2 HP 208-230V Enclosed Motor Starter, Nema 4X, Air Compressor Controls
Stock:
In Stock

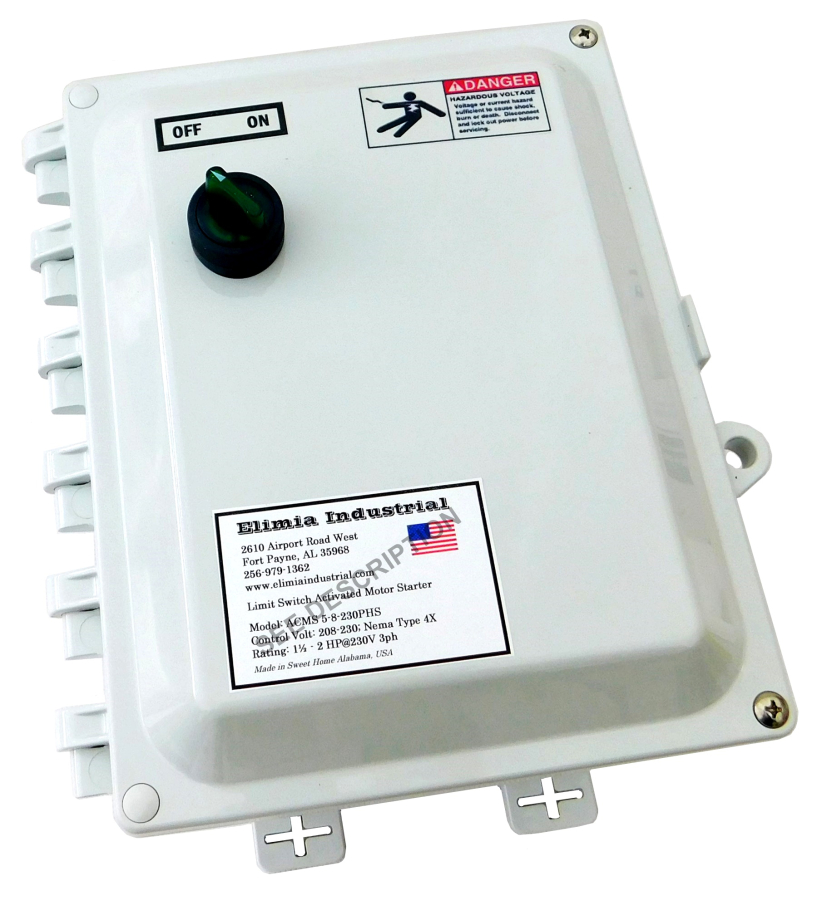

Pre-wired motor starter set up for Air Compressors with Off/Enable controls in a heavy duty polycarbonate hinged enclosure.
Read the descripton fully. Picture may vary from specifications.
Complete enclosed motor starter.
All units unless noted are certified UL 508A and labeled.

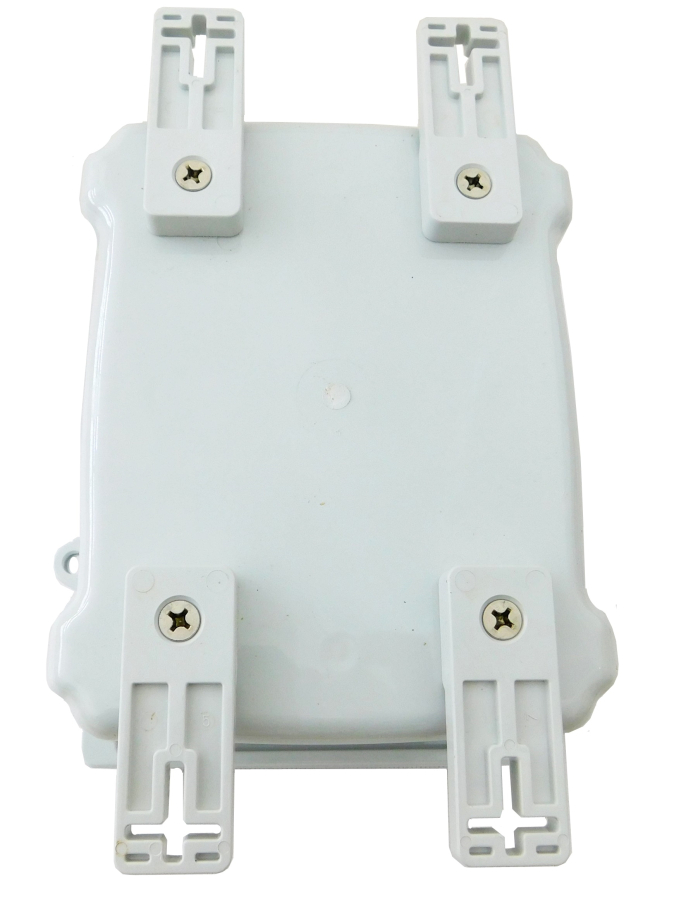

Nema 4X Polycarbonate enclosure with Hinged Door and Latches.
Pre-wired for easy installation.

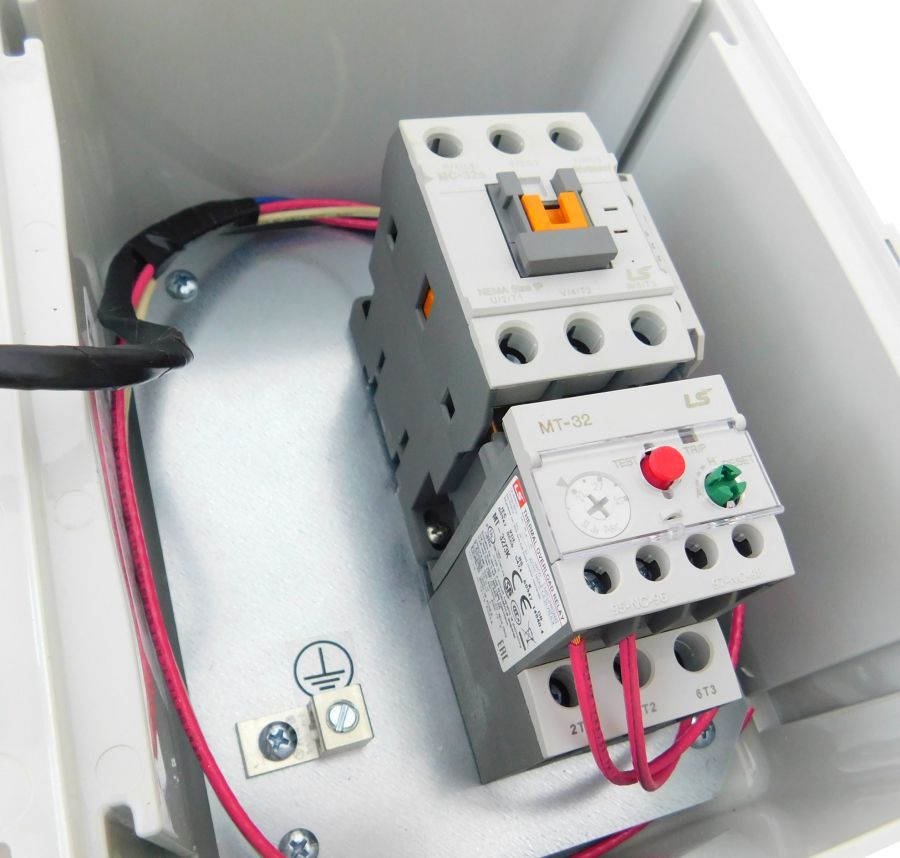

This type of configuration is design for Air Compressors. Unit is equipped with an Off/Enable switch and built in LED indicator. When the switch is in the Enable position the motor starter will engage when the pressure switch for the air compressor closes. There are two wires stubbed inside the assembly that you will extend and connect to your air compressor pressure switch.
Note: These type of controls are typically used on equipment that operates automatically from a remote limit switch.
Specifications:
- Enclosure - Polycarbonate with Hinged Door, Nema 4X, 8x6x4
- Motor Starter - Nema size 0, IEC size 12
- Coil - 230V Control Voltage
- Contactor HP rating UL - 3 HP @ 230V, 3PH
- Overload trip range - 6 - 9 Amps
- Sized for Normal loaded 2 HP @ 208-230V
- Controls - Momentary push buttons with A600 contacts
- UL508A certified
Sized for Normal loaded 2 HP @ 208-230V Motor, 3PH, 208-240V Controls
Contact us if you have any questions - 256-979-1362
