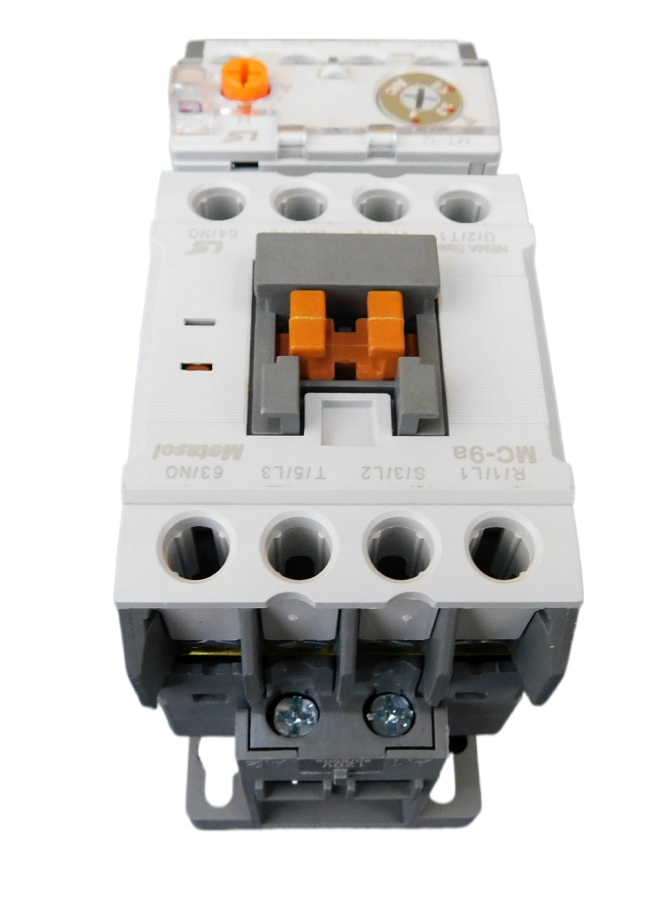

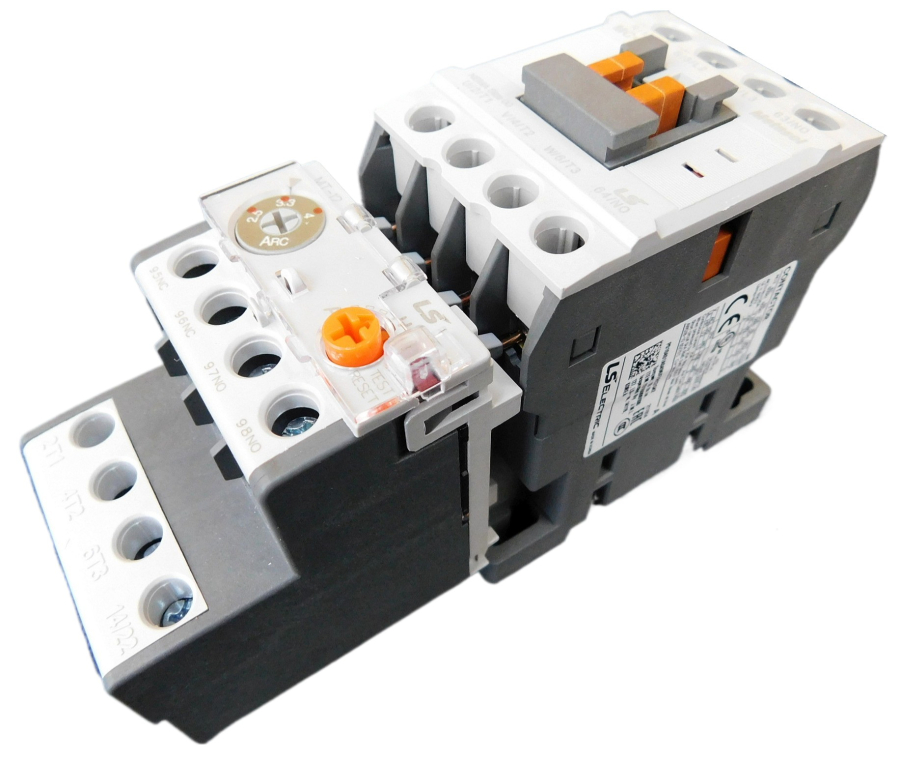

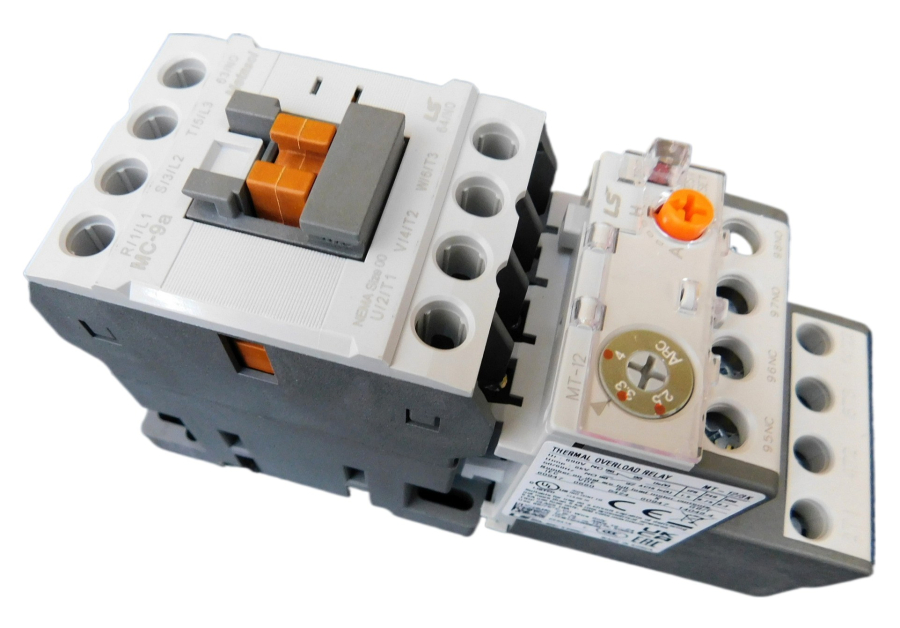

Motor Starter, 1.6-2.5 Amp, 480V Coil, 3/4 - 1HP 480V

Complete motor starter sized for 3/4 - 1 HP at 480V. Operating Voltage is 480VAC.

The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

Shipped as two separate devices, contactor and overload.

LSis brand, made in Korea

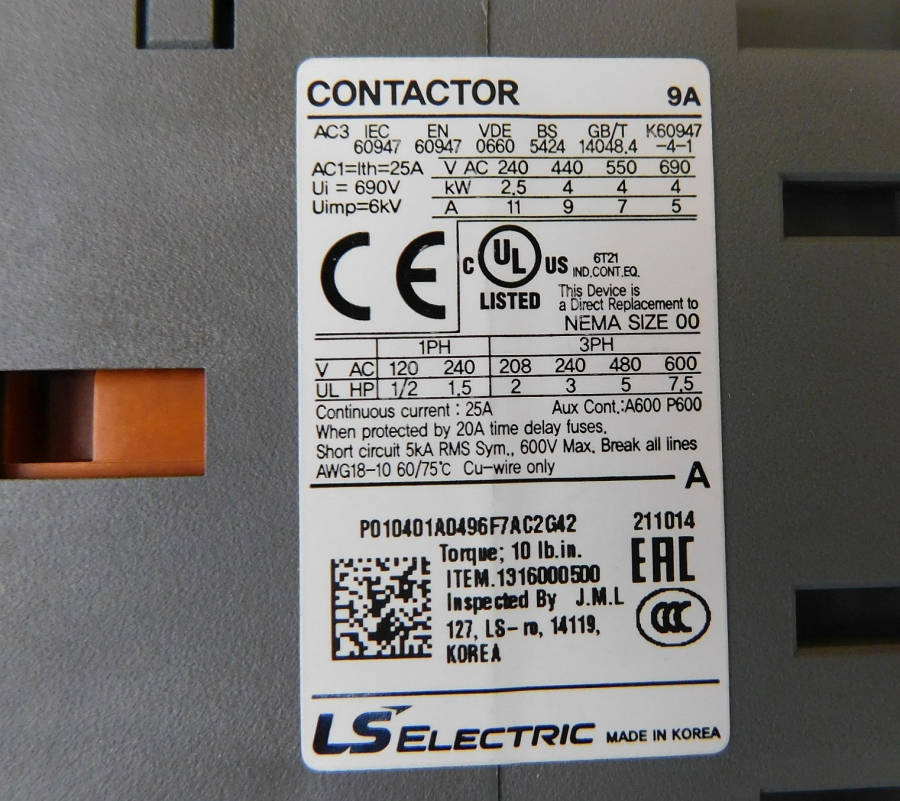

• Contactor - Nema size 00, IEC size 9 (may be subbed with a Nema size 0, IEC size 12)

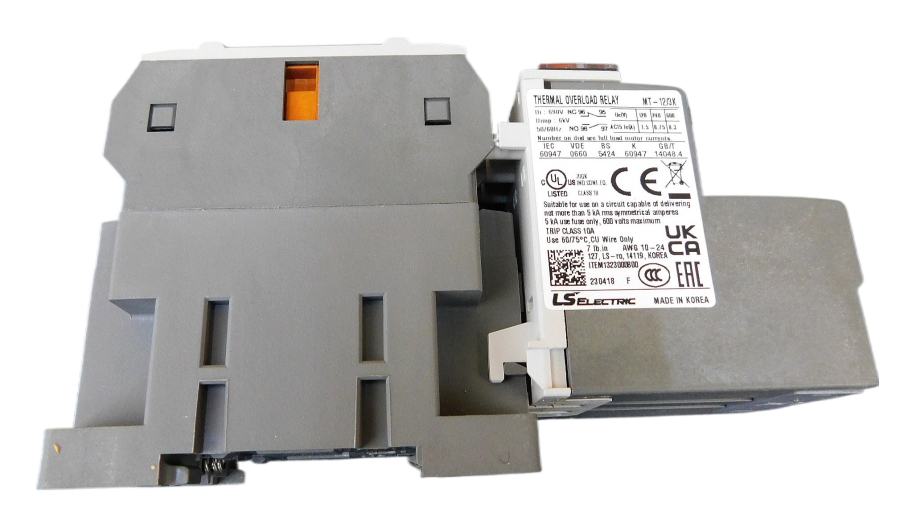

• Overload - Class 10 differential type, phase failure protection
• Coil - 480V
• Contactor HP rating UL - 5HP @ 480V
• Overload trip range - 1.6 - 2.5 Amps
• Sized for Heavy loaded 3/4 HP motor @ 480V OR Normal loaded or Heavy loaded 1 HP motor
• Includes (1) N/O auxiliary contact built in the contactor
• Overload frame size 12
