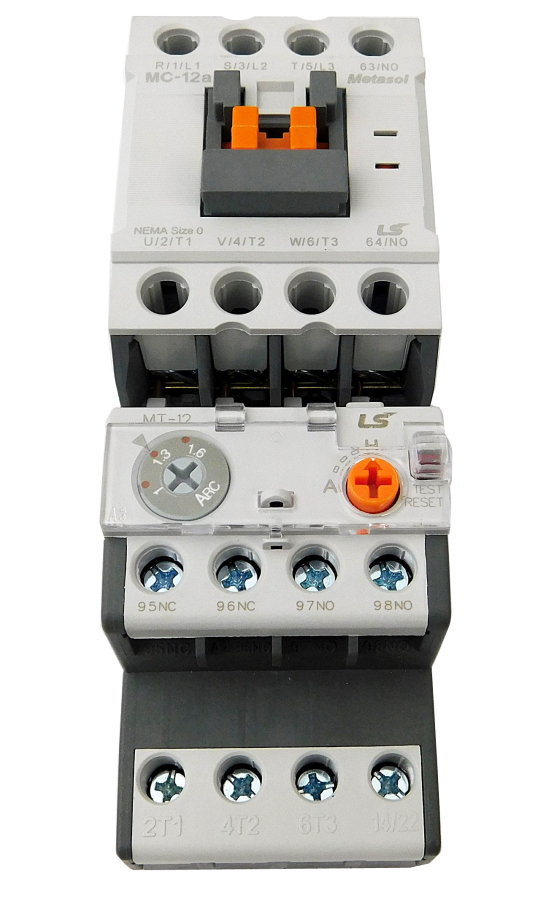

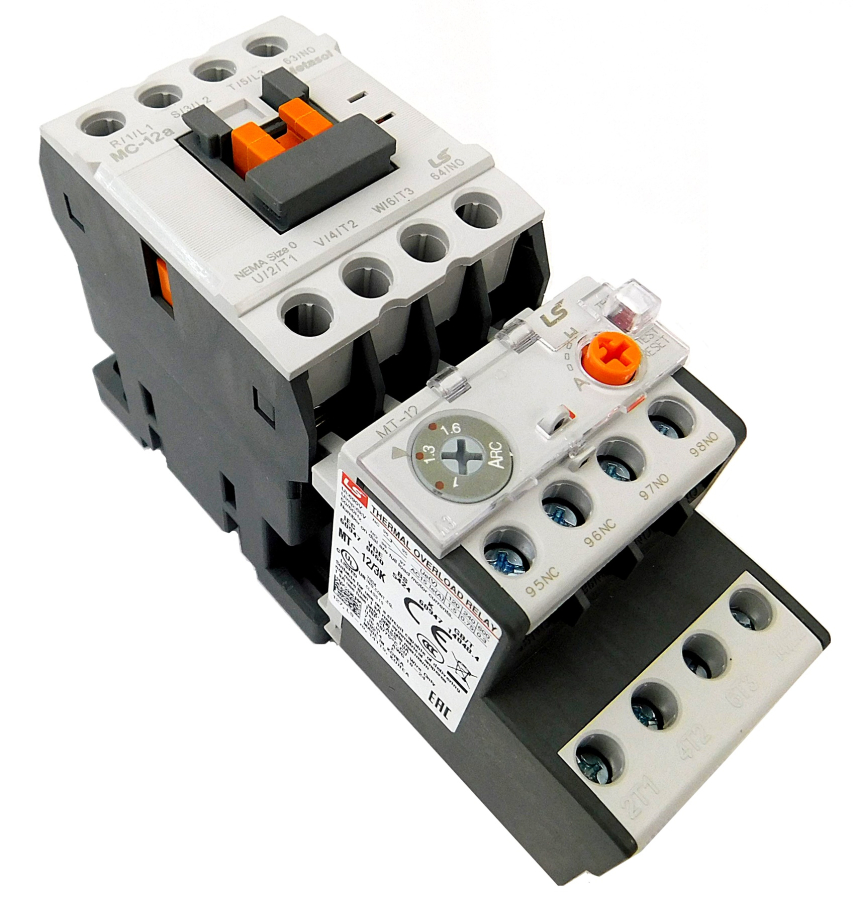

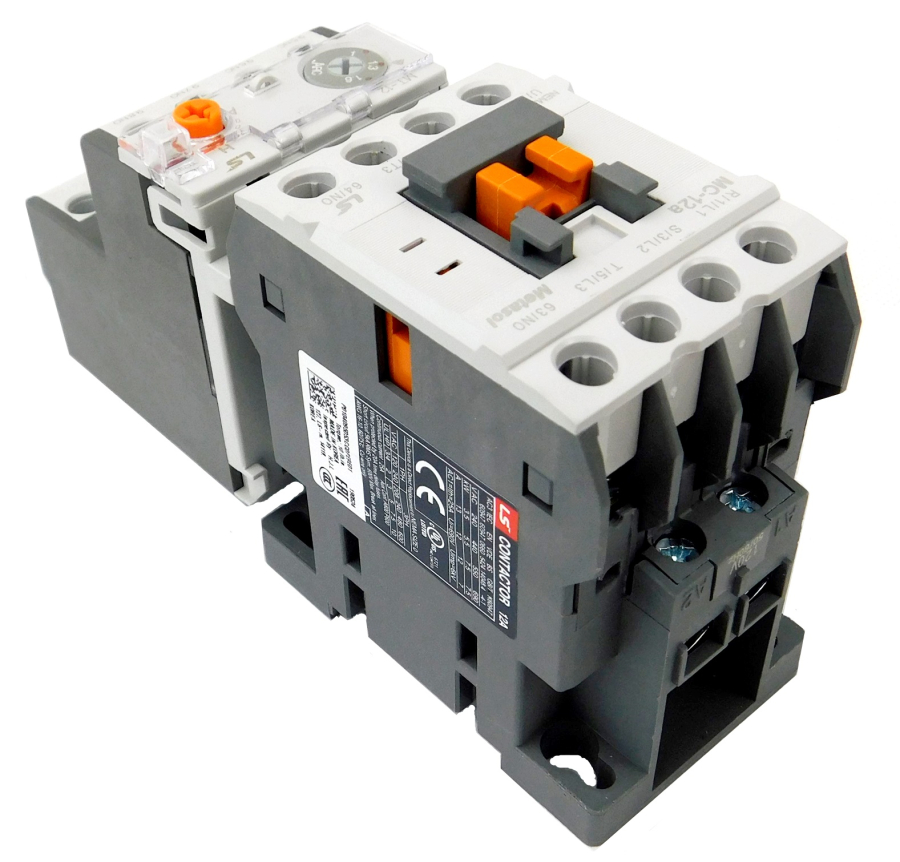

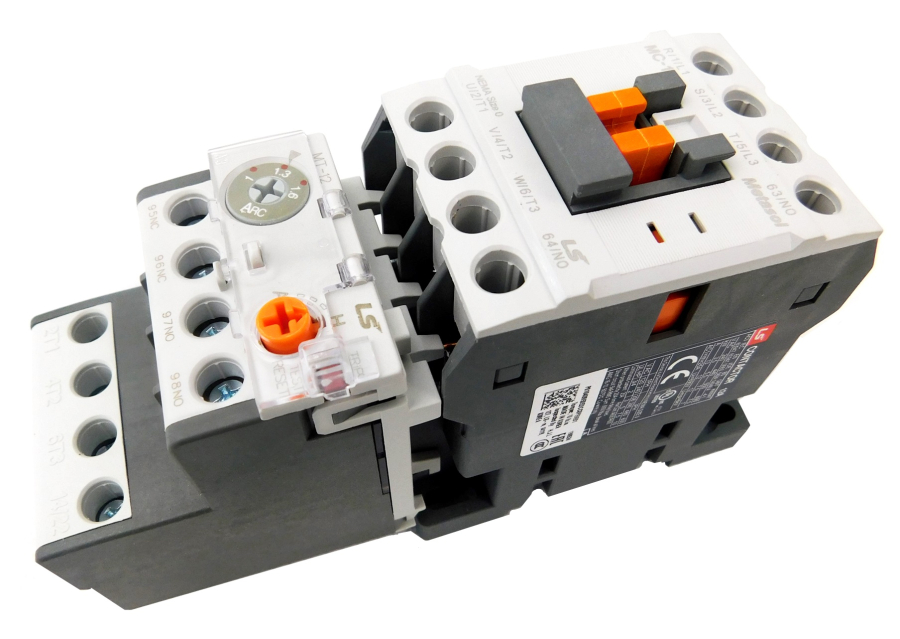

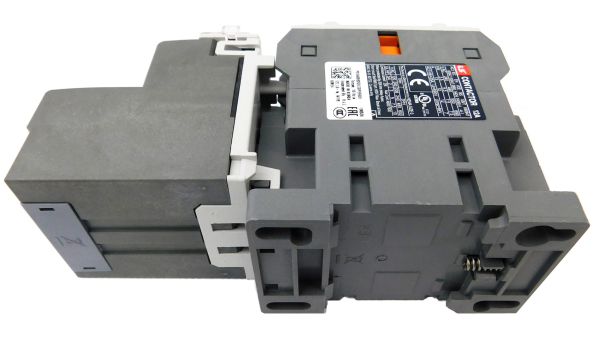

Motor Starter, 6-9 Amp, 480V Coil, 5HP 480V, Nema Size 0

Complete motor starter sized for HP at 480V. Operating Voltage is 480VAC.

The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

Shipped as two separate devices, contactor and overload.

LSis brand, made in Korea

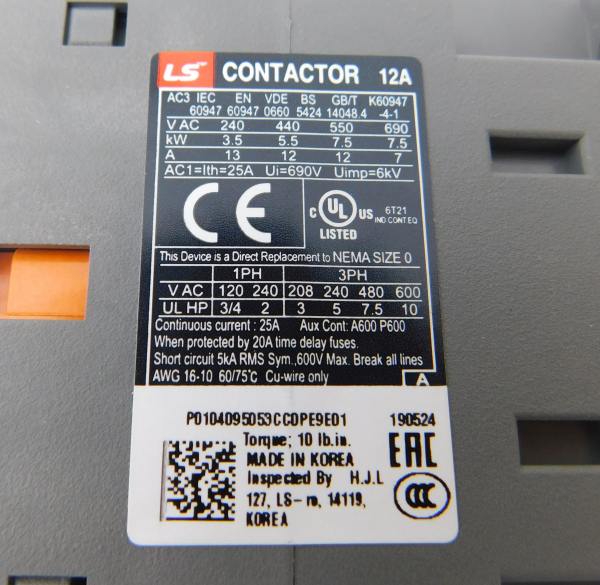

• Contactor - Nema size 0, IEC size 12
• Overload - Class 10 differential type, phase failure protection
• Coil - 480V
• Contactor HP rating UL - 7.5HP @ 480V
• Overload trip range - 6 - 9 Amps
• Sized for Normal or Heavy loaded 5 HP motor @ 480V
• Includes (1) N/O auxiliary contact built in the contactor
• Overload frame size 12
