Motor Starter, 7-10 Amp, 480V Coil, 5HP 480V Nema Size 1

Complete motor starter sized for Hard Start 5HP at 480V. Operating Voltage is 480VAC.

The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

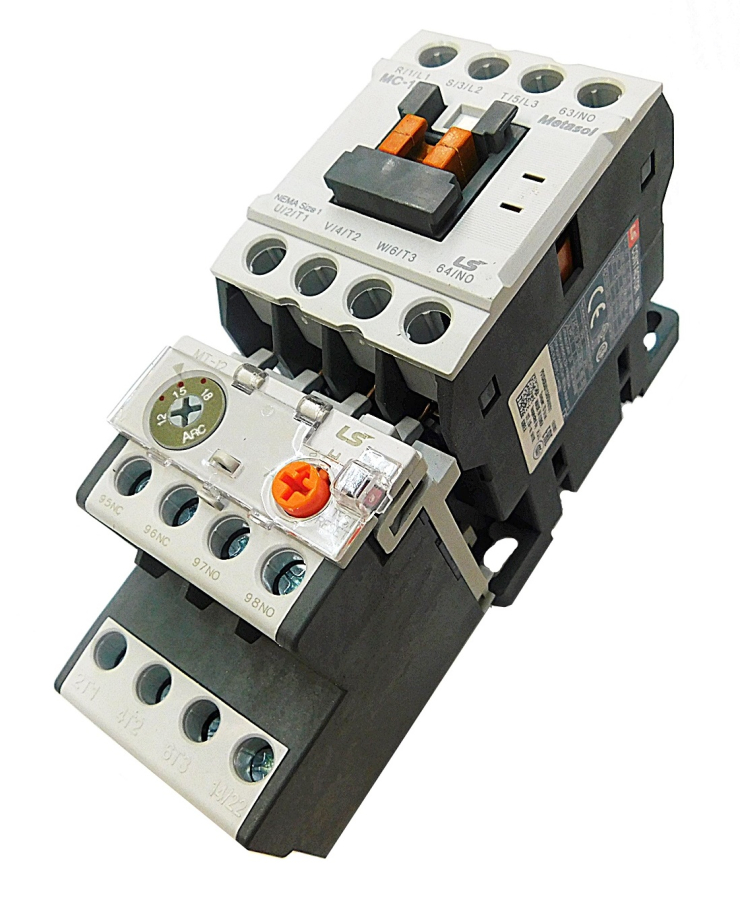

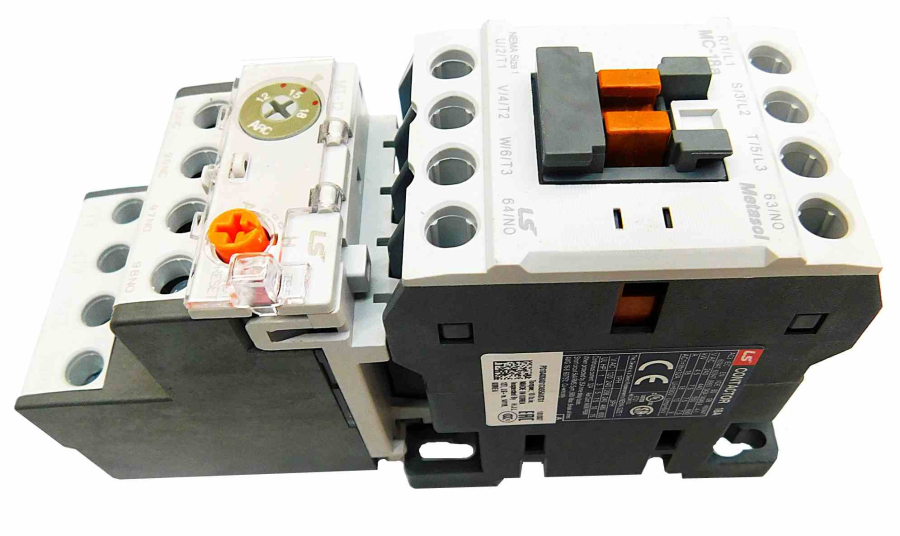

Shipped as two separate devices, contactor and overload.

LSis brand, made in Korea

• Contactor - Nema size 1, IEC size 18

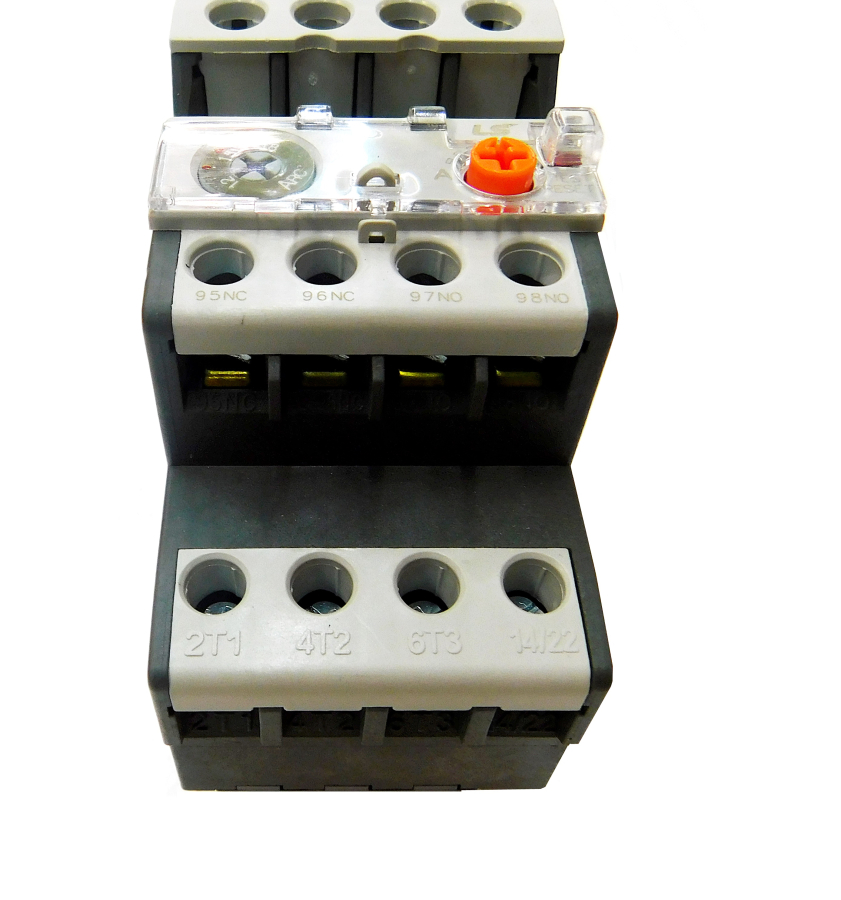

• Overload - Class 10 differential type, phase failure protection
• Coil - 480V

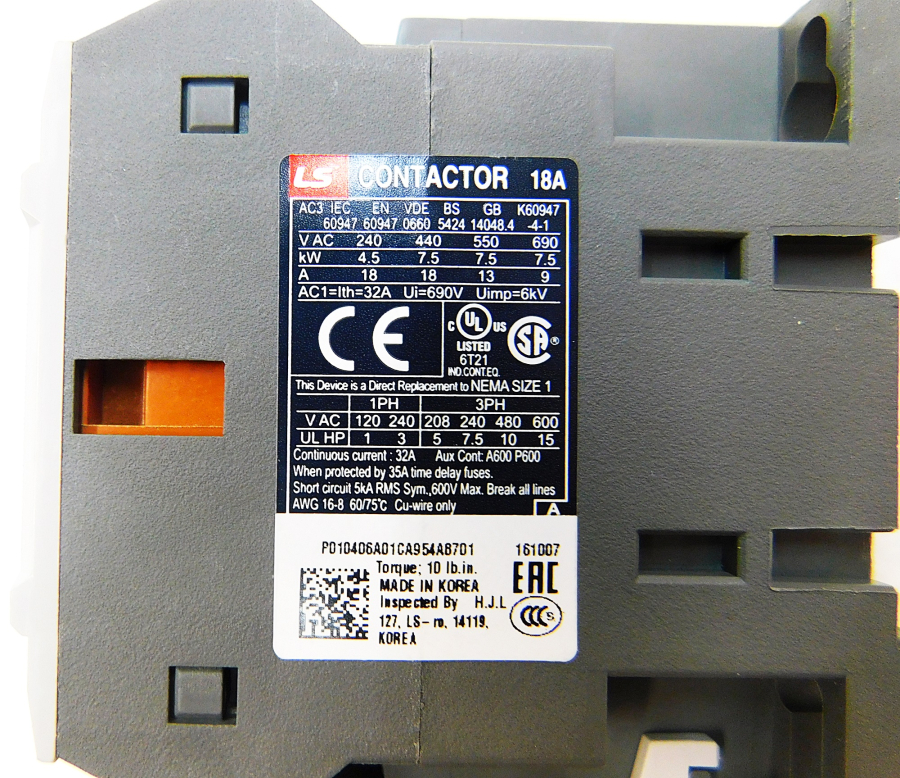

• Contactor HP rating UL - 10HP @ 480V
• Overload trip range - 7 - 10 Amps
• Sized for Heavy loaded 5 HP motor @ 480V
• Includes (1) N/O auxiliary contact built in the contactor
• Overload frame size 12
