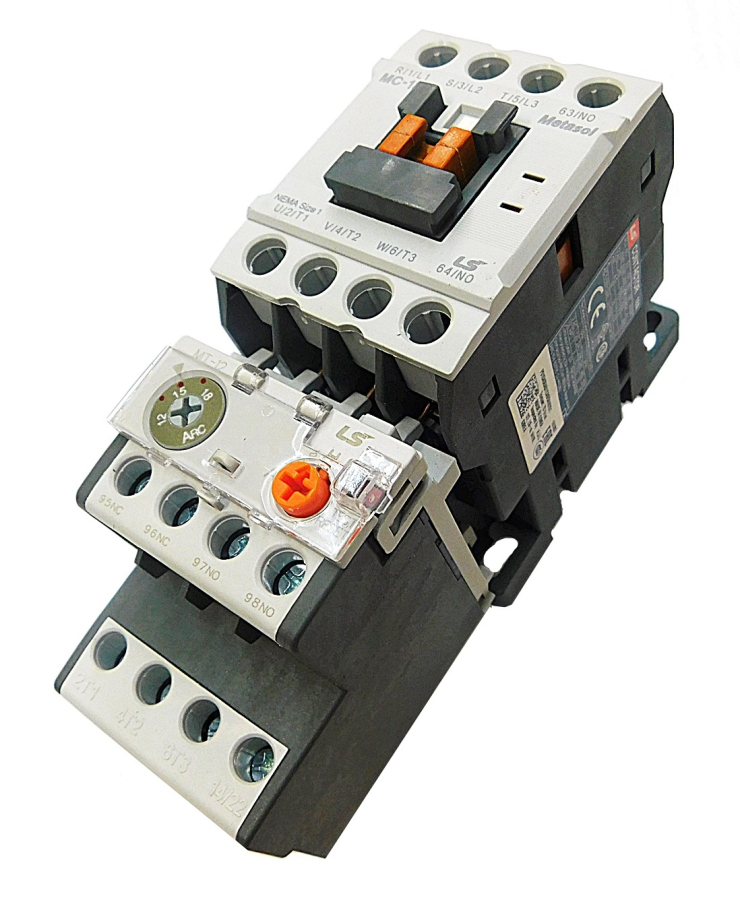

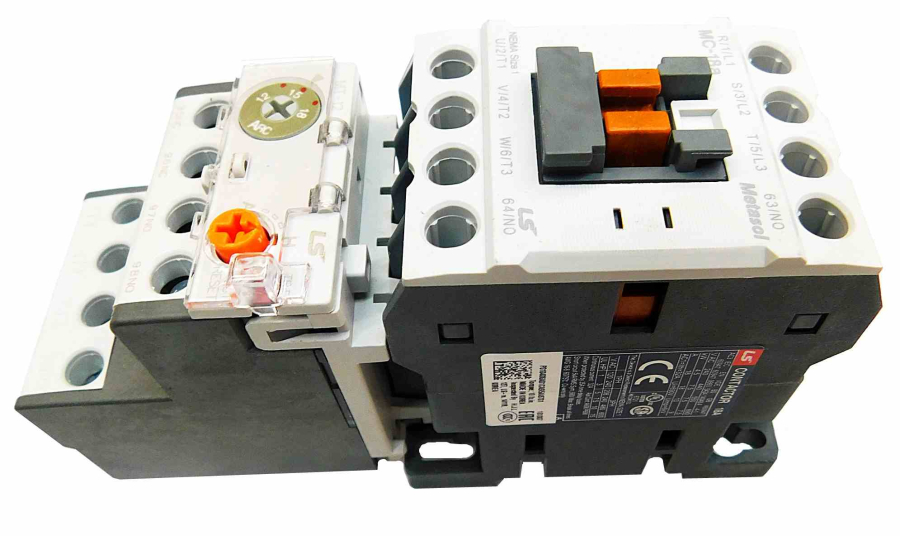

Complete motor starter sized for a Normal loaded 7.5HP at 480V. Operating Voltage is 480VAC.
The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.
Shipped as two separate devices, contactor and overload.
LSis brand, made in Korea

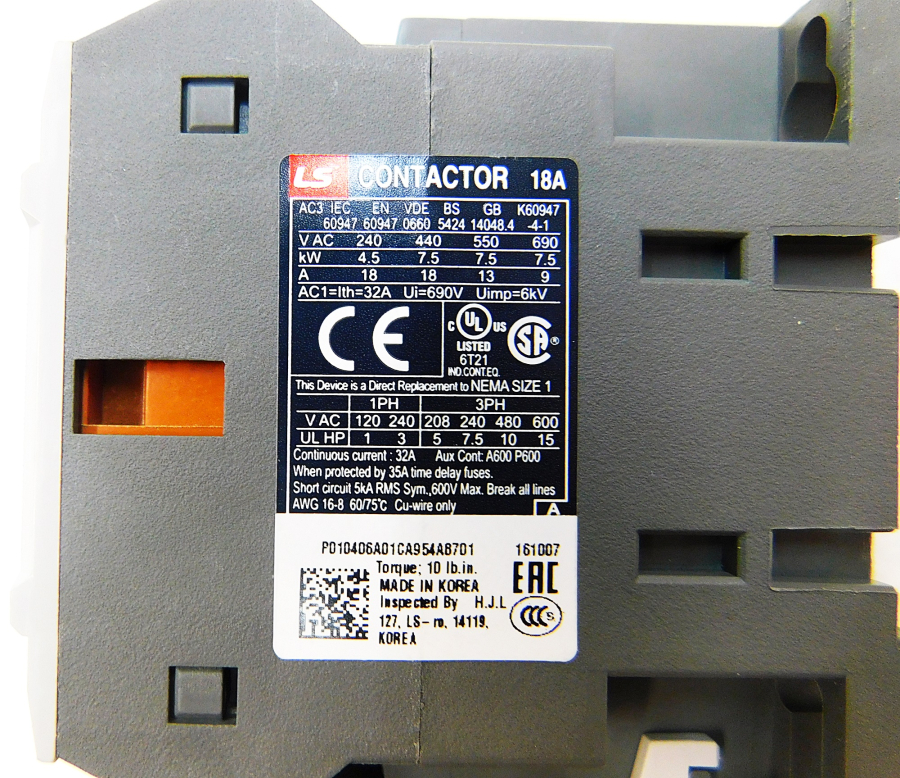

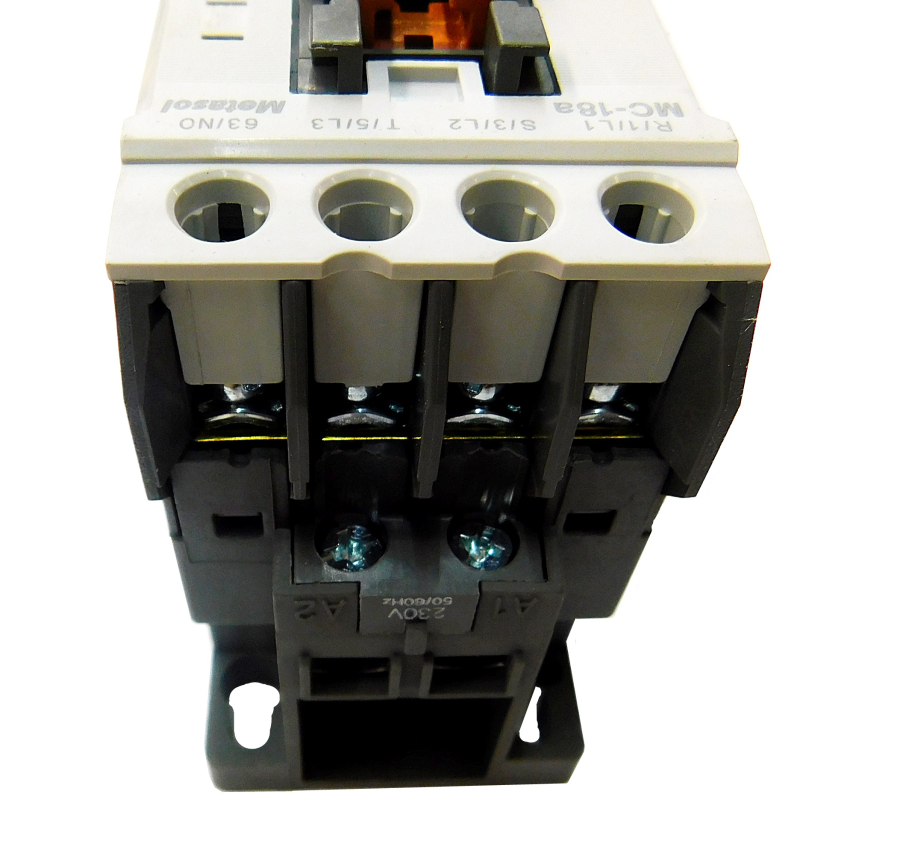

- Contactor - Nema size 1, IEC size 18

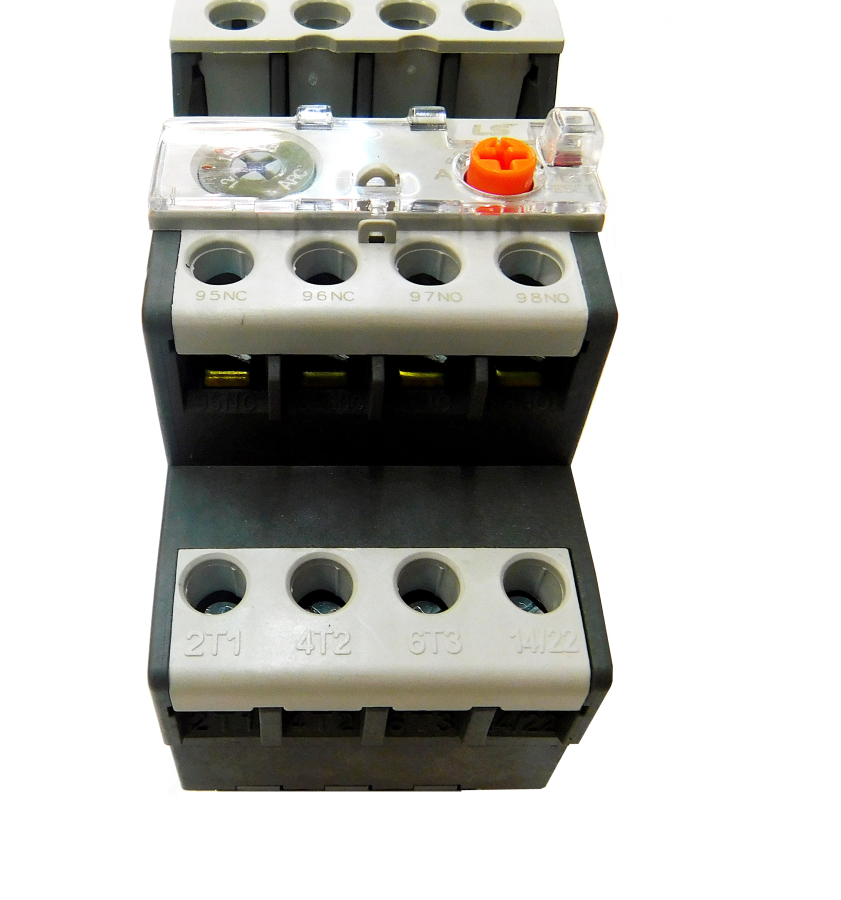

- Overload - Class 10 differential type, phase failure protection
- Coil - 480V
- Contactor HP rating UL - 10HP @ 480V
- Overload trip range - 9 - 13 Amps
- Sized for Normal loaded 7.5 HP motor @ 480V
- Includes (1) N/O auxiliary contact built in the contactor
