Motor Starter, 22-32 Amp, 480V Coil, 20HP 480V IEC Size 32
Stock:
In Stock
Complete motor starter sized for Normal loaded 20HP at 480V. Operating Voltage is 480VAC
Contactor, IEC Size 32. Overload Frame size 32. Elimia PN: 22-32-480-32
Complete motor starter sized for a Normal loaded 20HP at 480V. Operating Voltage is 480VAC.
The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

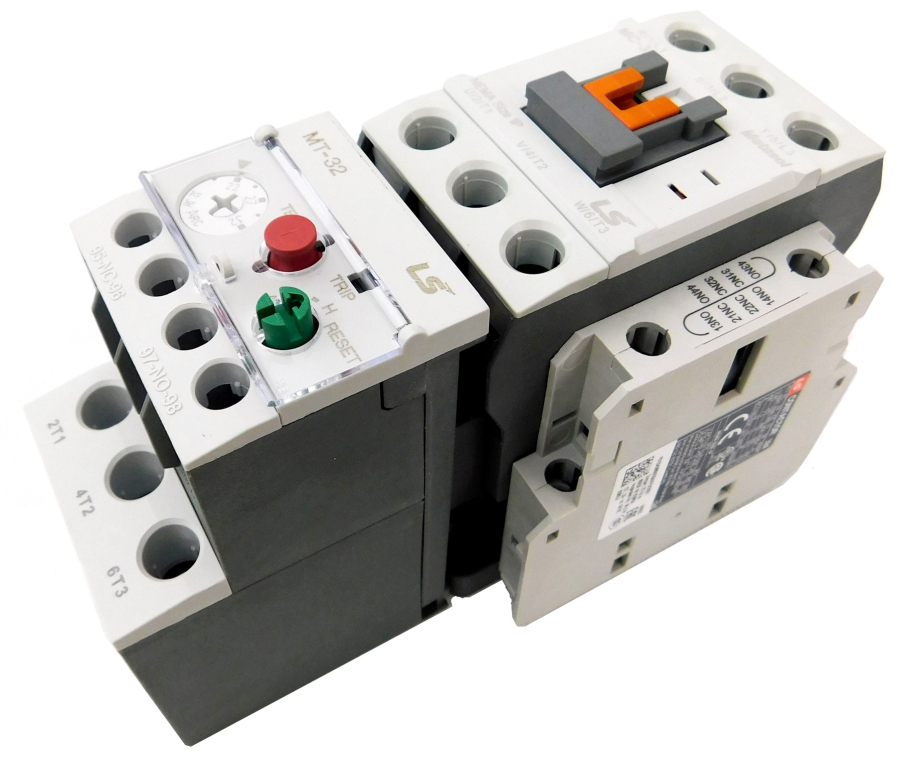

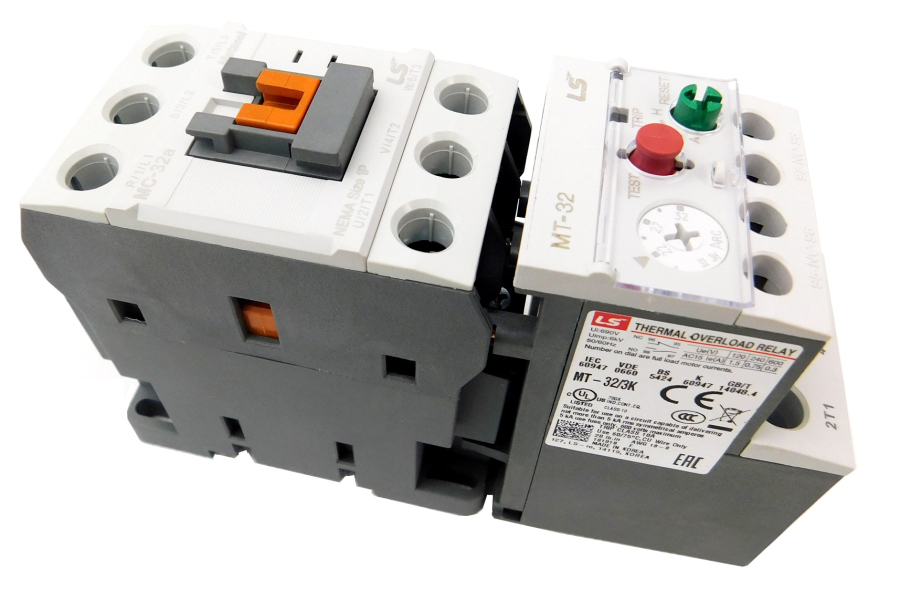

Shipped as two separate devices, contactor and overload.
LSis brand, made in Korea
- Contactor IEC size 32
- Overload - Class 10 differential type, phase failure protection
- Coil - 480V
- Contactor HP rating UL - 20HP @ 480V
- Overload trip range - 22-32 Amps
- Sized for Normal loaded 20 HP motor @ 480V
- Includes (1) N/O & (1) N/C auxiliary contact
- Overload Frame size 32
