Motor Starter, 18-25 Amp, 120V Coil, 15HP 480V, Nema Size 2, IEC Size 40
Stock:
In Stock
Complete motor starter sized for Heavy loaded 15HP at 480V. Operating Voltage is 120VAC
Contactor, Nema Size 2, IEC Size 40. Overload Frame size 32. Heavy duty set up. Elimia PN 18-25-120-40
Complete motor starter sized for a Heavy loaded 15HP at 480V. Operating Voltage is 120VAC.
The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

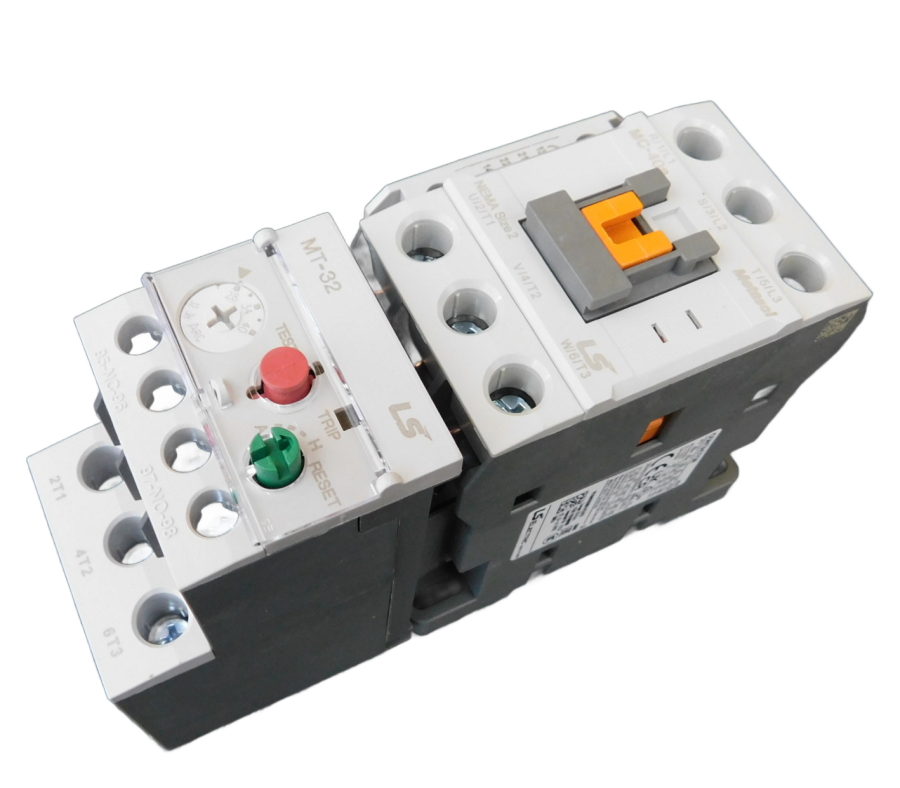

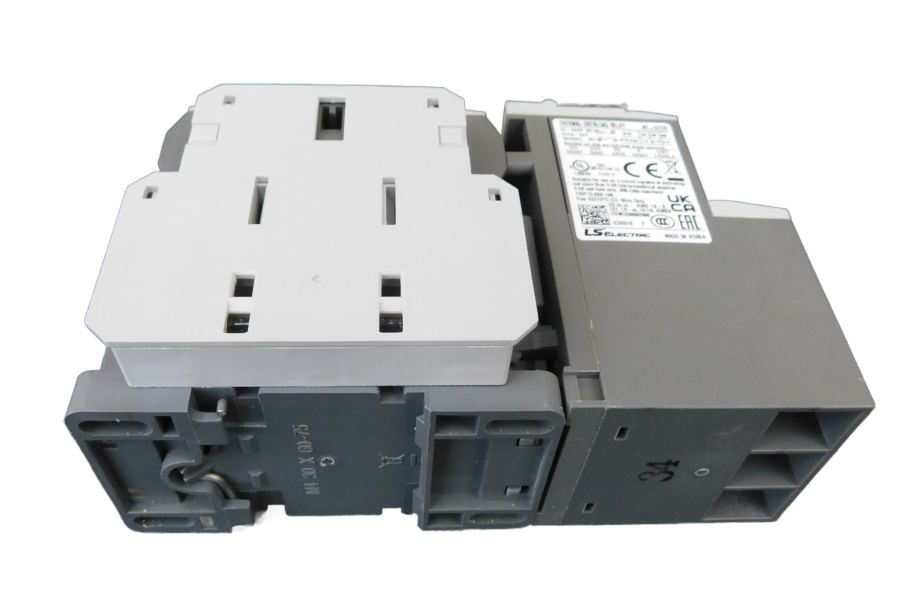

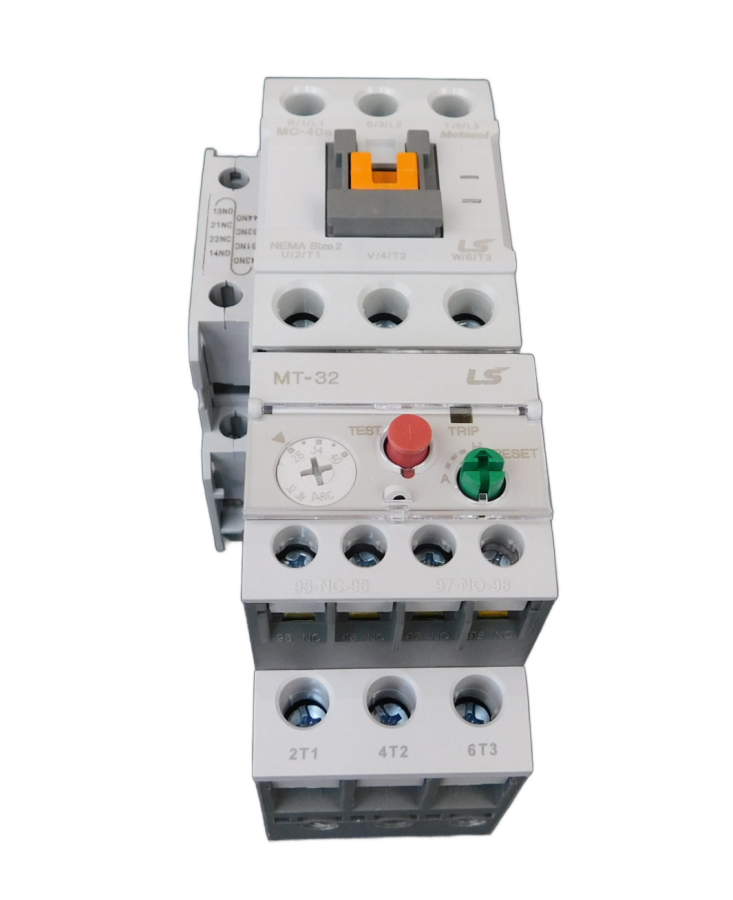

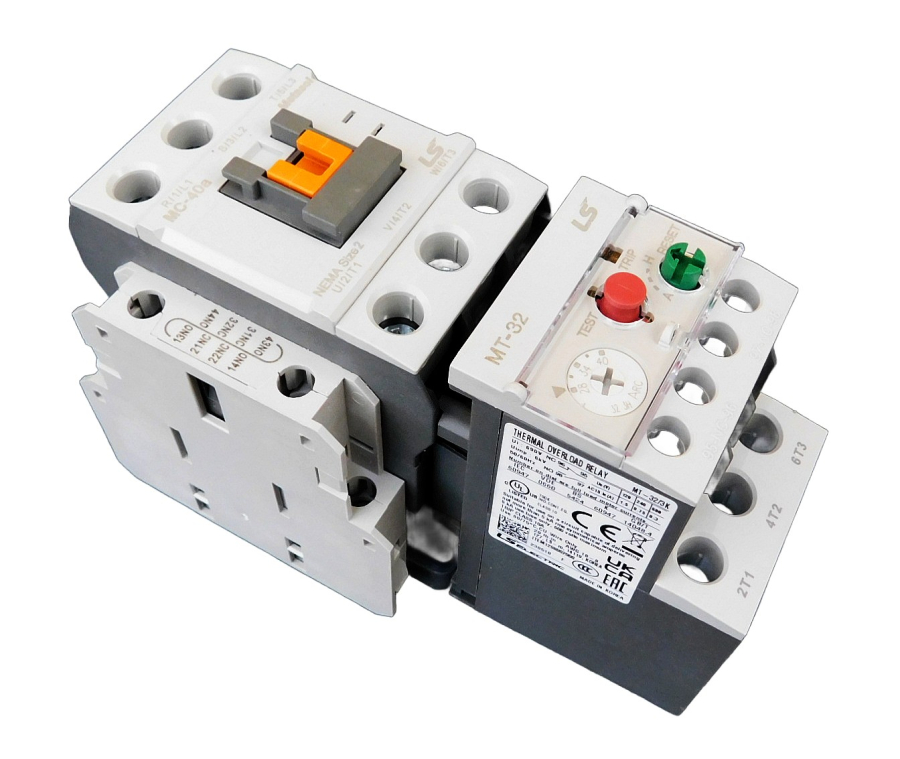

Shipped as two separate devices, contactor and overload.
LSis brand, made in Korea

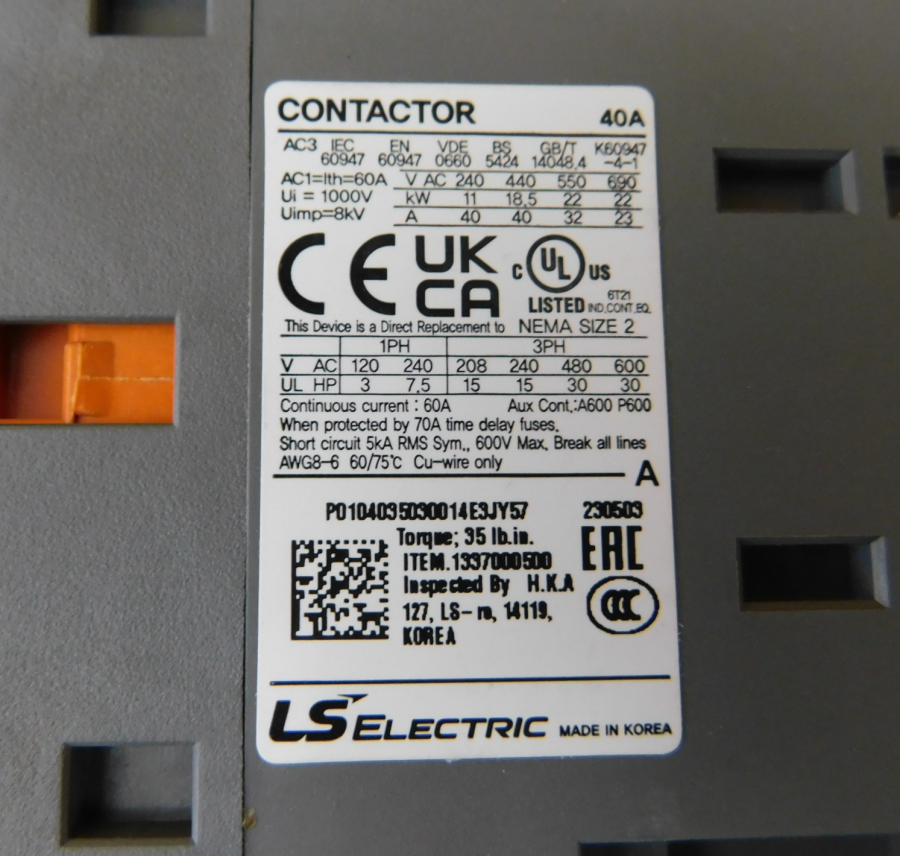

- Contactor - Nema size 2, IEC size 40
- Overload - Class 10 differential type, phase failure protection
- Coil - 120V
- Contactor HP rating UL - 30HP @ 480V
- Overload trip range - 18-25 Amps
- Sized for Heavy loaded 15 HP motor @ 480V
- Includes (1) N/O & (1) N/C auxiliary contact
- Overload Frame size 32
