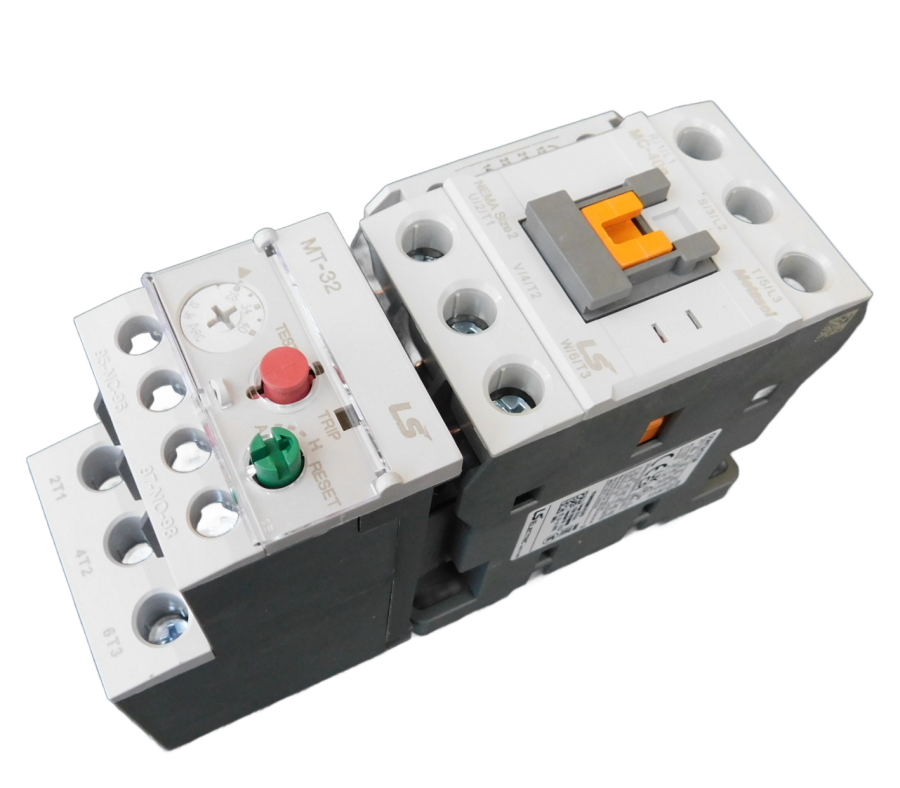

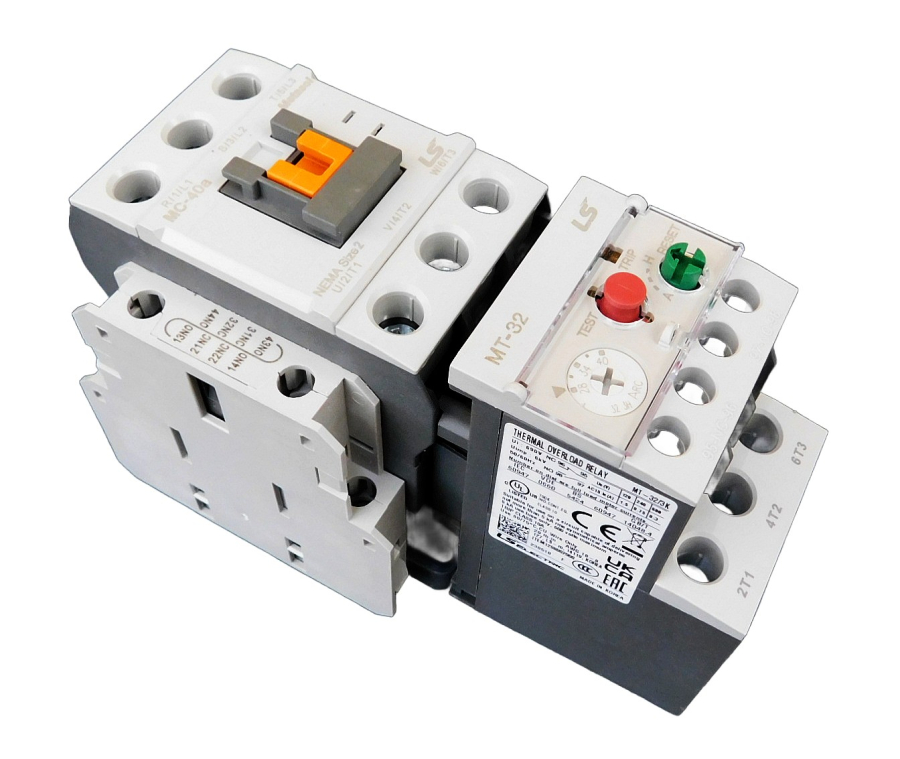

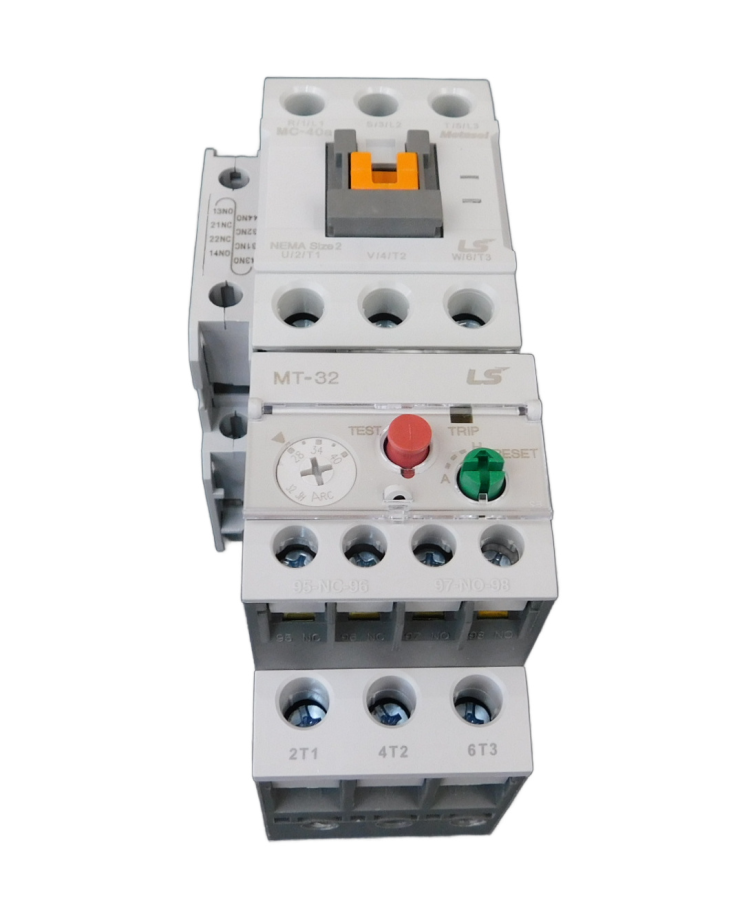

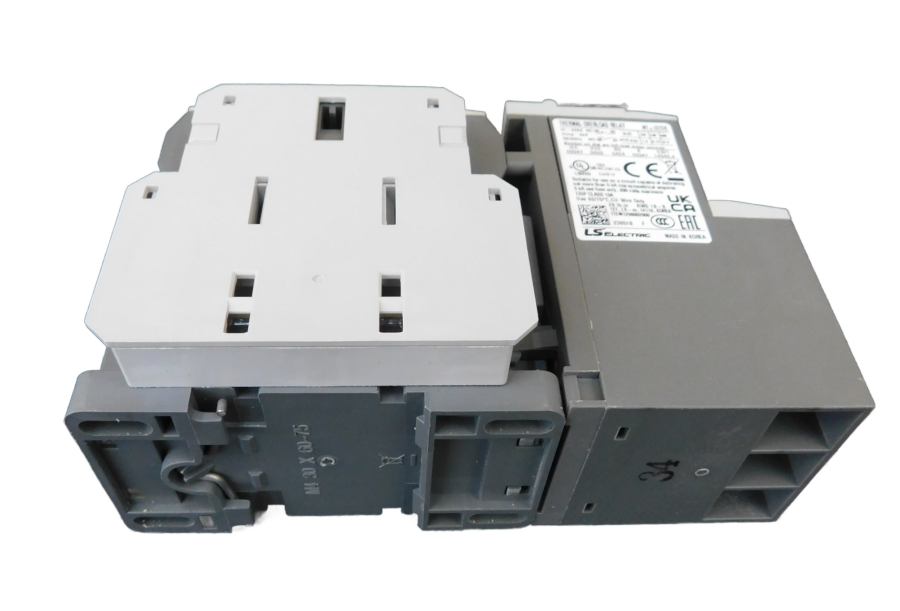

Motor Starter, 28-40 Amp, 480V Coil, 25HP 480V, Nema Size 2, IEC Size 40

Complete motor starter sized for a Normal loaded 25HP at 480V. Operating Voltage is 480VAC.

The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

Shipped as two separate devices, contactor and overload.

LSis brand, made in Korea

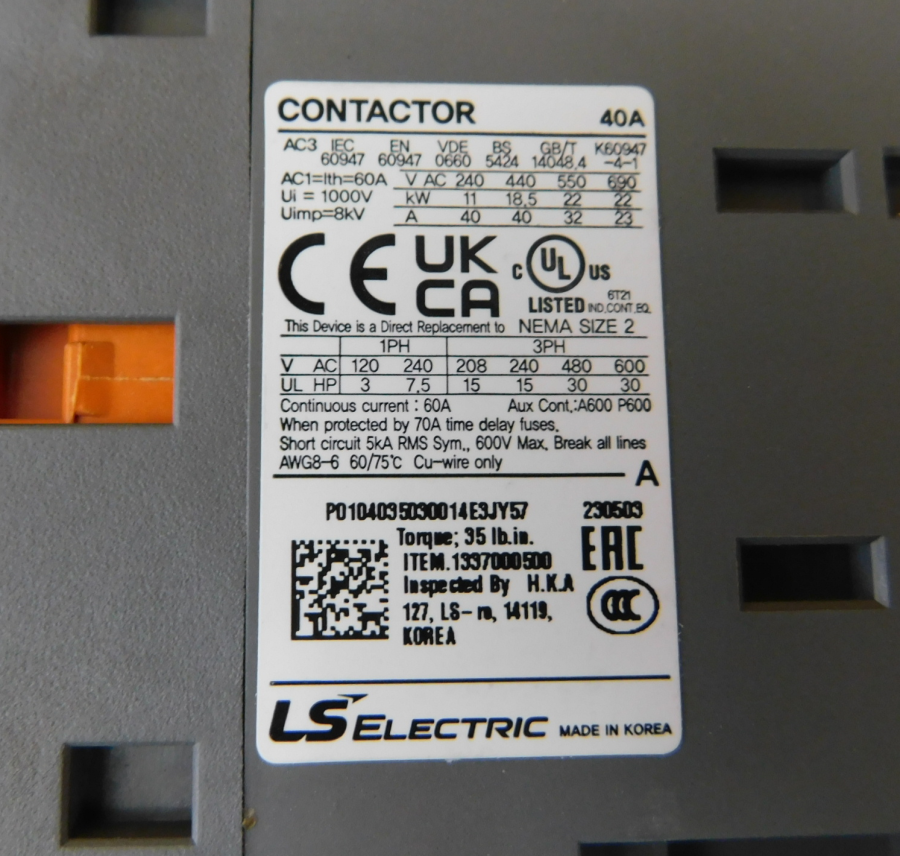

• Contactor - Nema size 2, IEC size 40
• Overload - Class 10 differential type, phase failure protection
• Coil - 480V
• Contactor HP rating UL - 30HP @ 480V
• Overload trip range - 28-40 Amps
• Sized for Normal loaded 25 HP motor @ 480V
• Includes (1) N/O & (1) N/C auxiliary contact
• Overload Frame size 32
