Motor Starter, 34-50 Amp, 480V Coil, 30HP 480V, IEC Size 65

Complete motor starter sized for a Normal or Heavy loaded 30HP at 480V. Operating Voltage is 480VAC.

The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

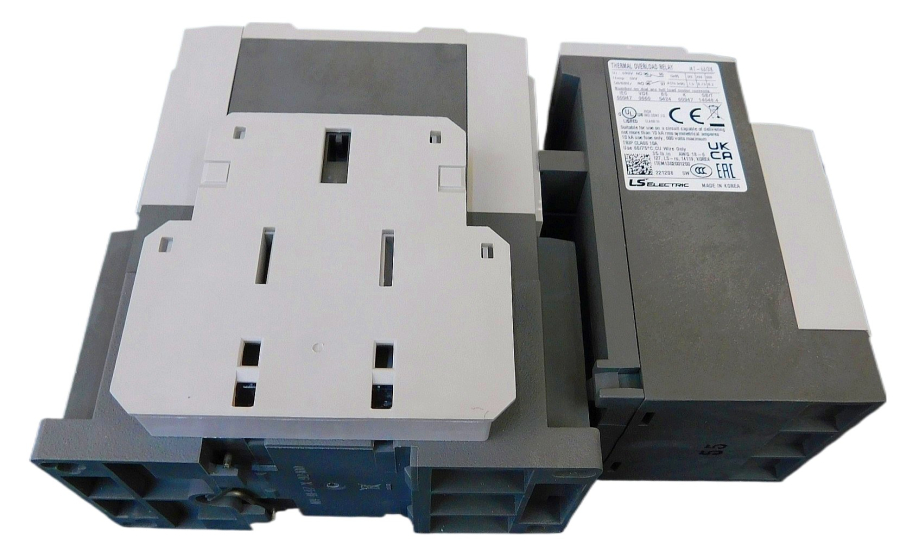

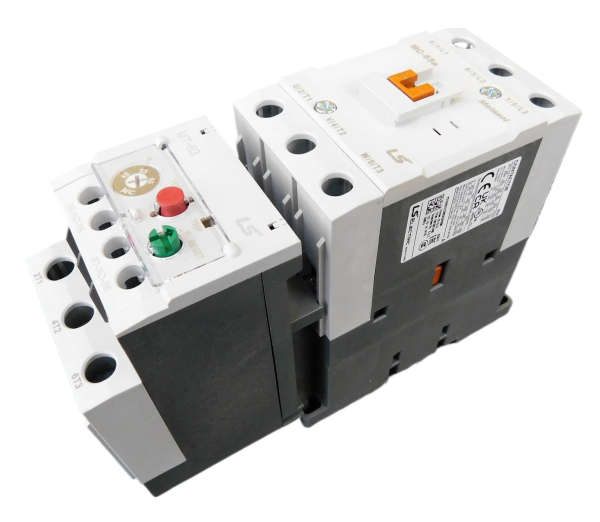

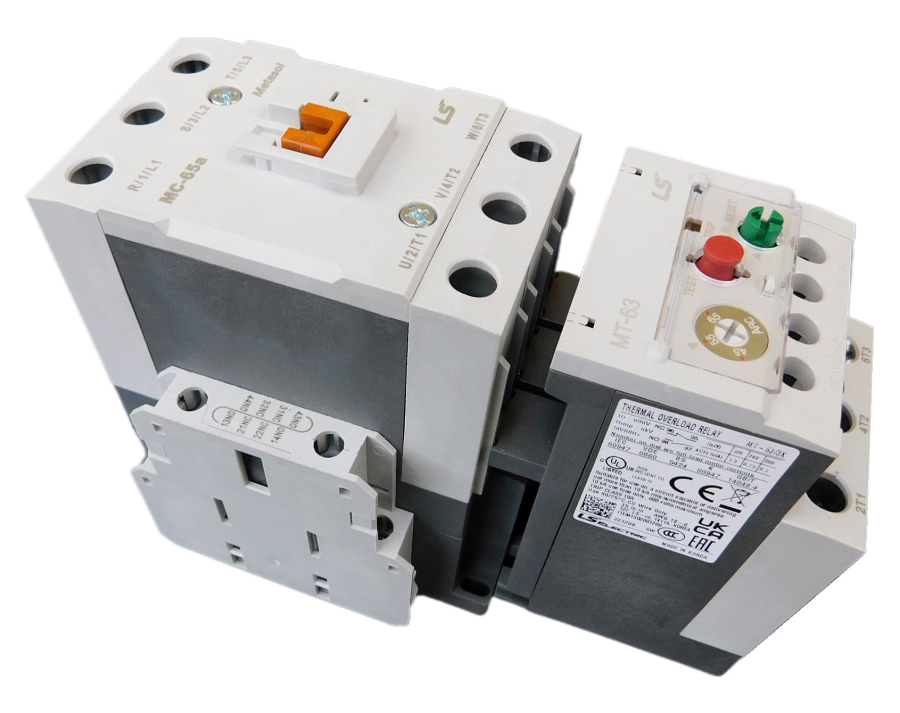

Shipped as two separate devices, contactor and overload.

LSis brand, made in Korea

• Contactor - IEC size 65
• Overload - Class 10 differential type, phase failure protection
• Coil - 480V
• Contactor HP rating UL - 50HP @ 480V
• Overload trip range - 34-50 Amps
• Sized for Normal or Heavy loaded 30 HP motor @ 480V
• Includes (1) N/O & (1) N/C auxiliary contact
• Overload Frame size 63
