Motor Starter, 45-65 Amp, 480V Coil, 40HP 480V, Nema Size 3, IEC Size 85
Stock:
In Stock
Complete motor starter sized for Normal or Heavy loaded 40HP at 480V. Operating Voltage is 480VAC
Contactor, Nema size 3. Overload Frame size 95. Heavy duty set up. Elimia PN: 45-65-480-85
Complete motor starter sized for a Normal or Heavy loaded 40HP at 480V. Operating Voltage is 480VAC.
The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

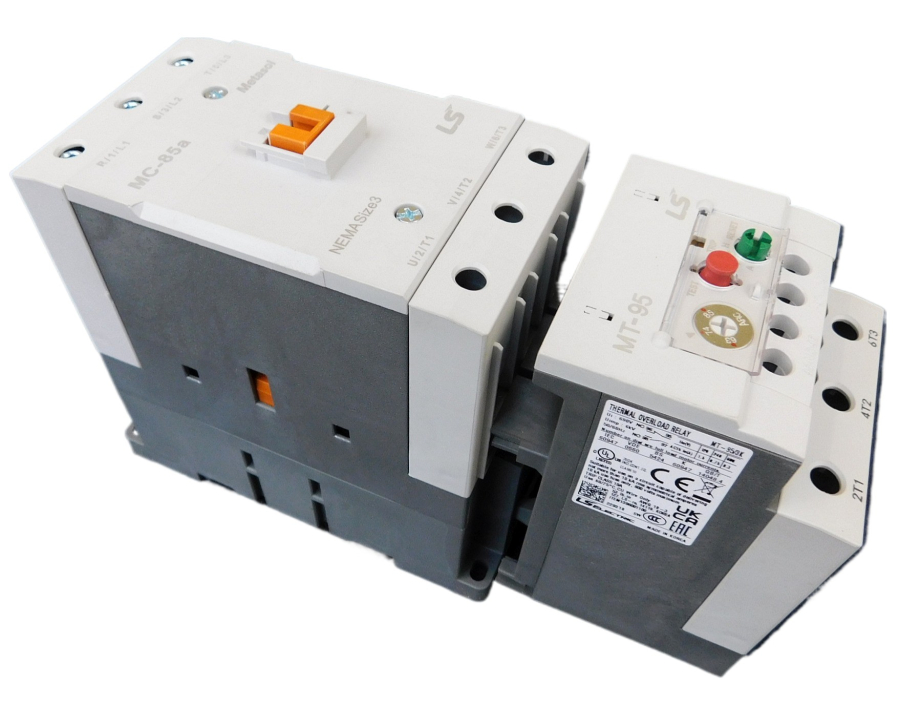

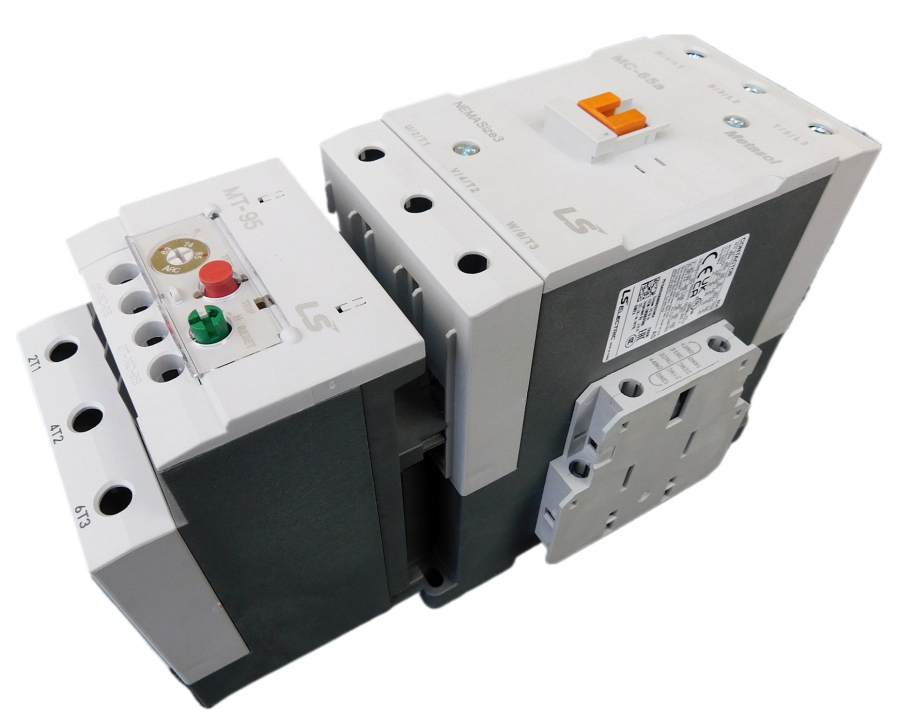

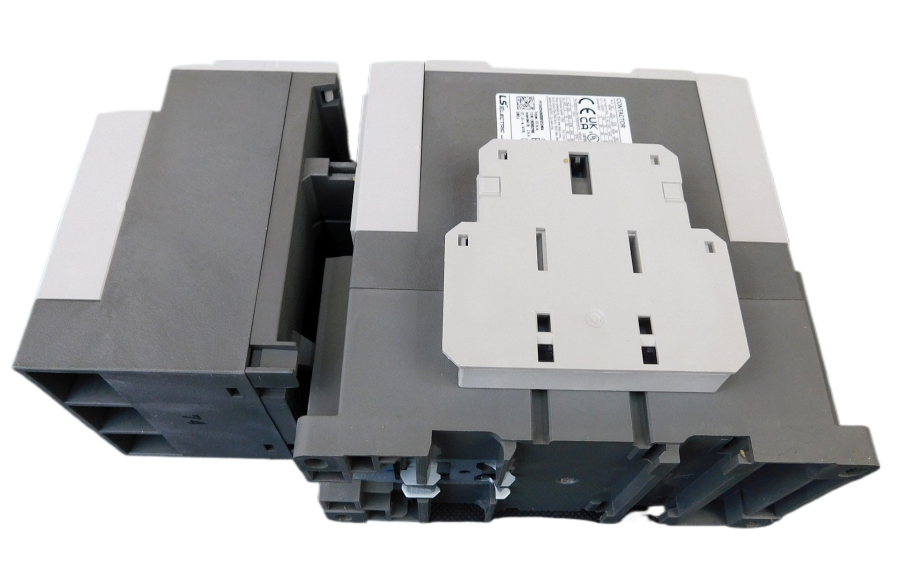

Shipped as two separate devices, contactor and overload.
LSis brand, made in Korea

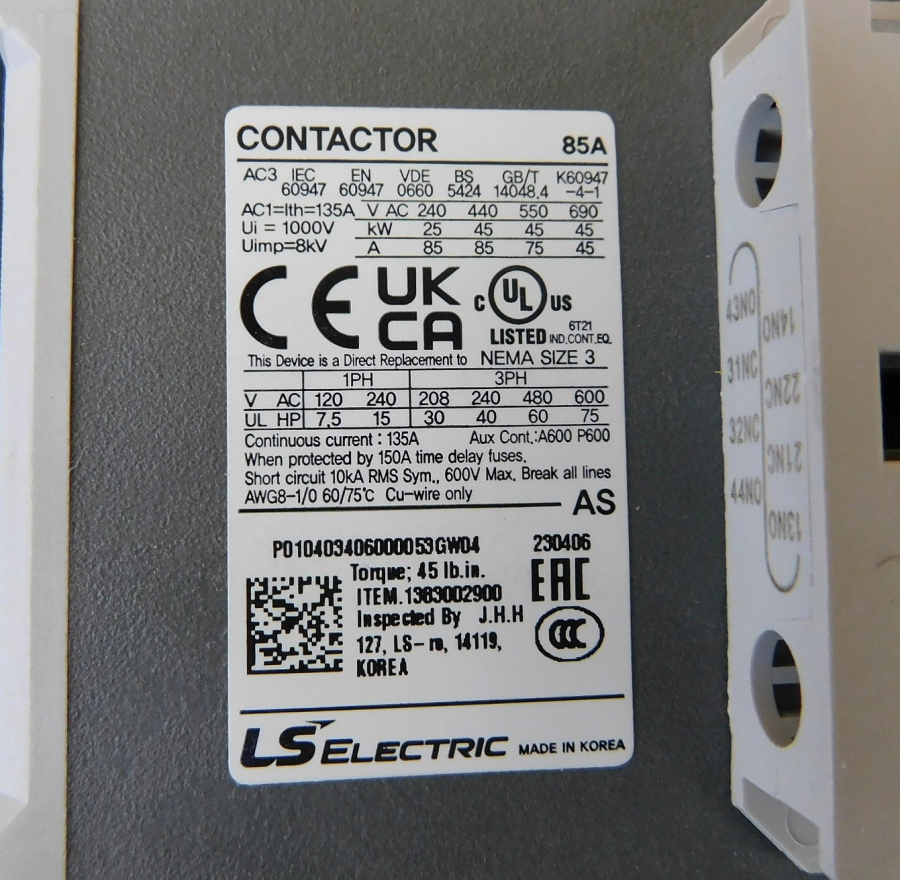

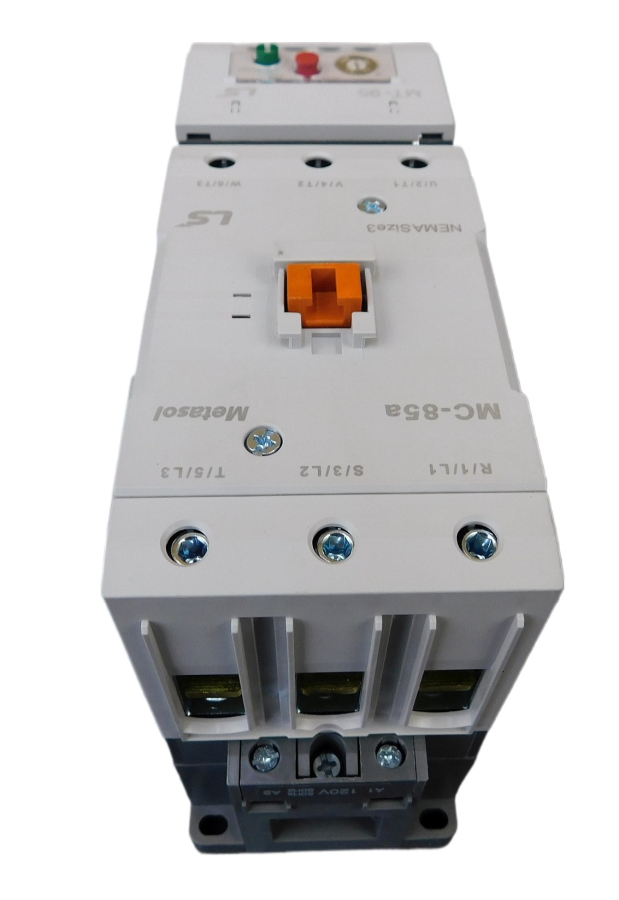

- Contactor - Nema size 3, IEC size 85
- Overload - Class 10 differential type, phase failure protection
- Coil - 480V
- Contactor HP rating UL - 60HP @ 480V
- Overload trip range - 45-65 Amps
- Sized for Normal or Heavy loaded 40 HP motor @ 480V
- Includes (1) N/O & (1) N/C auxiliary contact
- Overload Frame size 95
