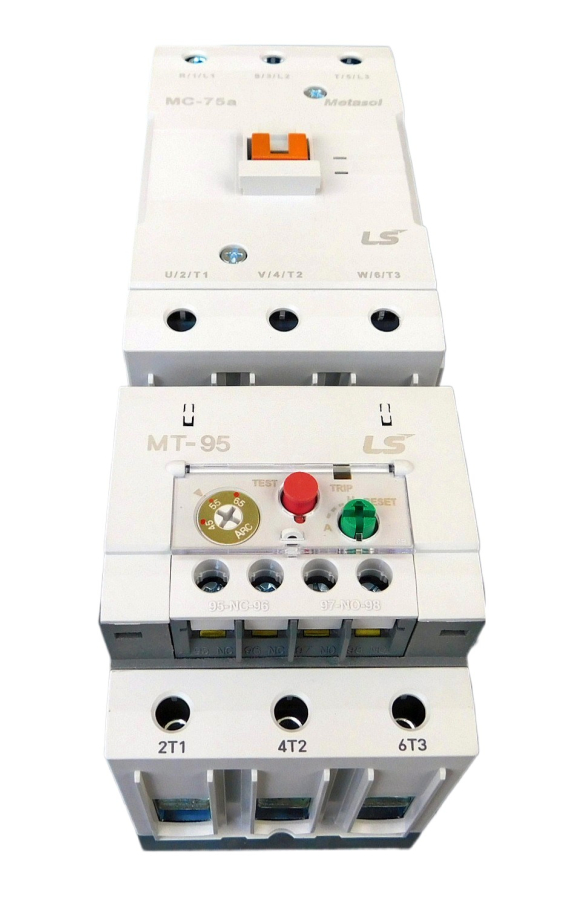

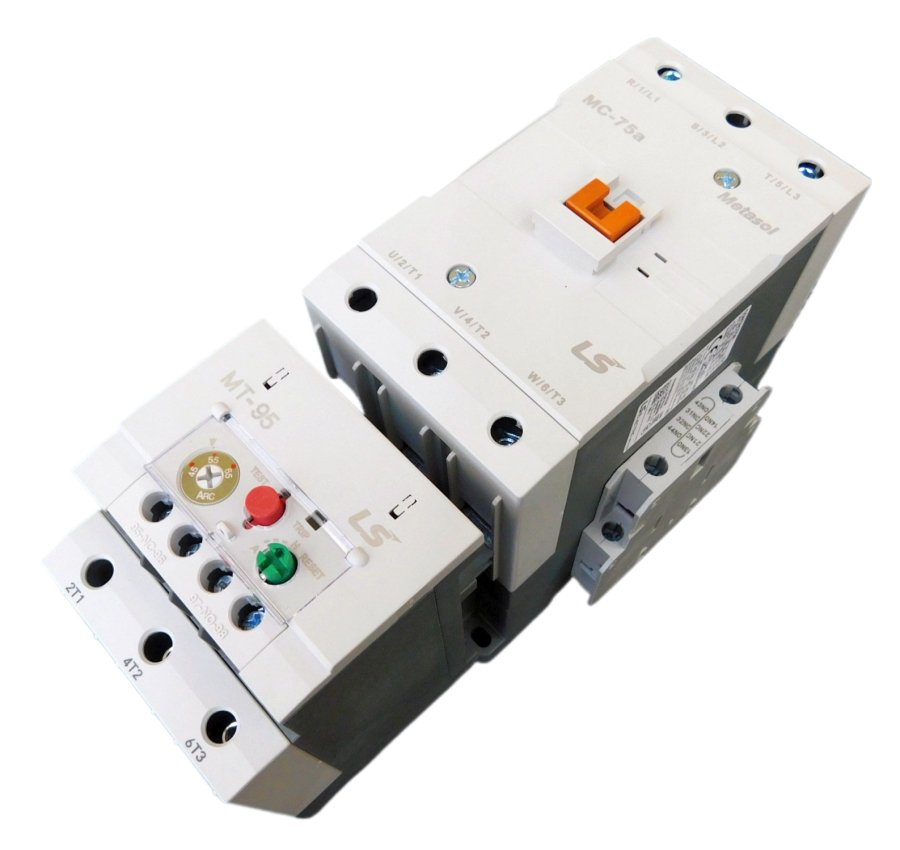

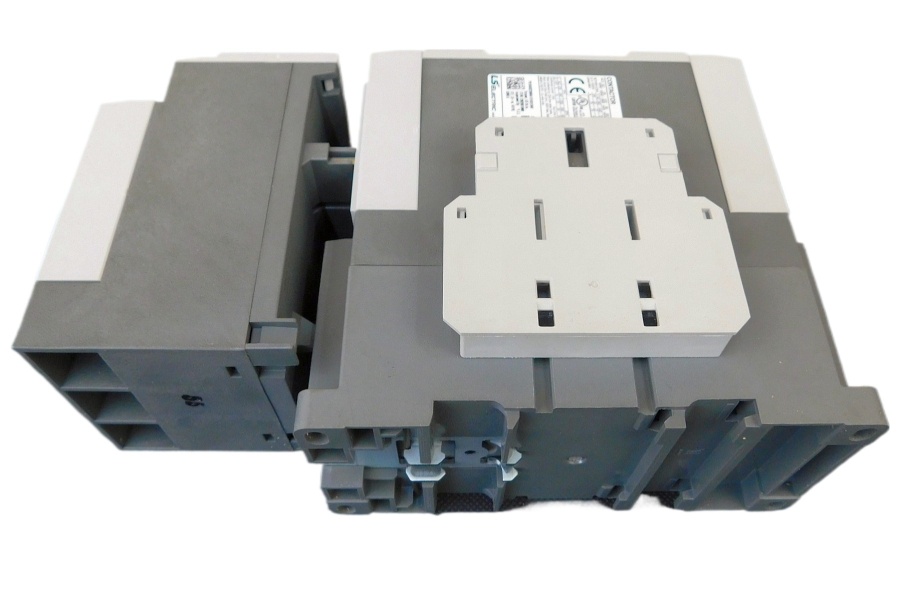

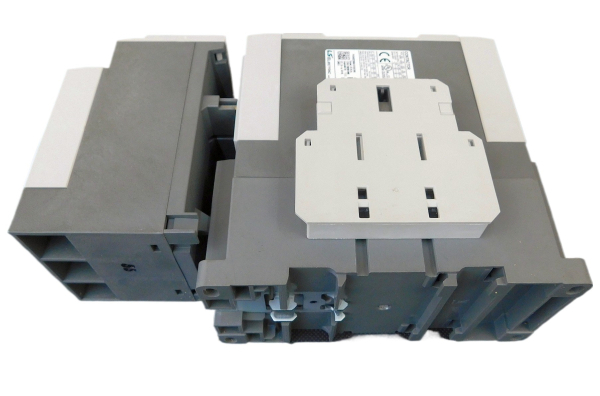

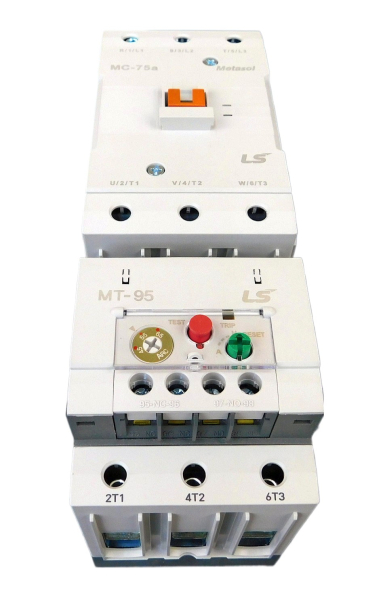

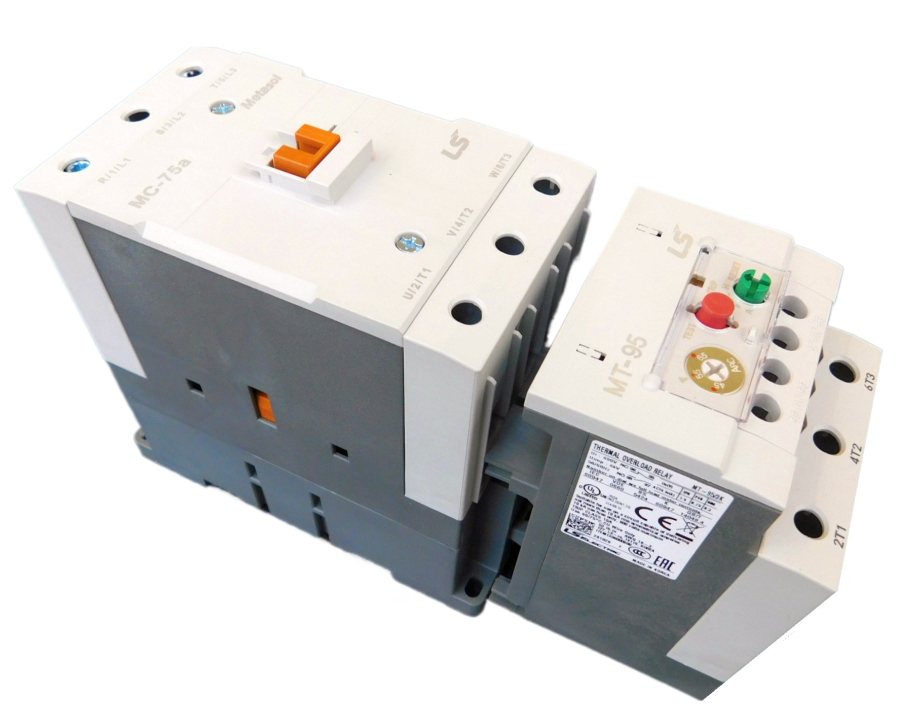

Motor Starter, 54-75 Amp, 480V Coil, 50HP 480V, IEC Size 75

Complete motor starter sized for a Normal loaded 50HP at 480V. Operating Voltage is 480VAC.

The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

Shipped as two separate devices, contactor and overload.

LSis brand, made in Korea

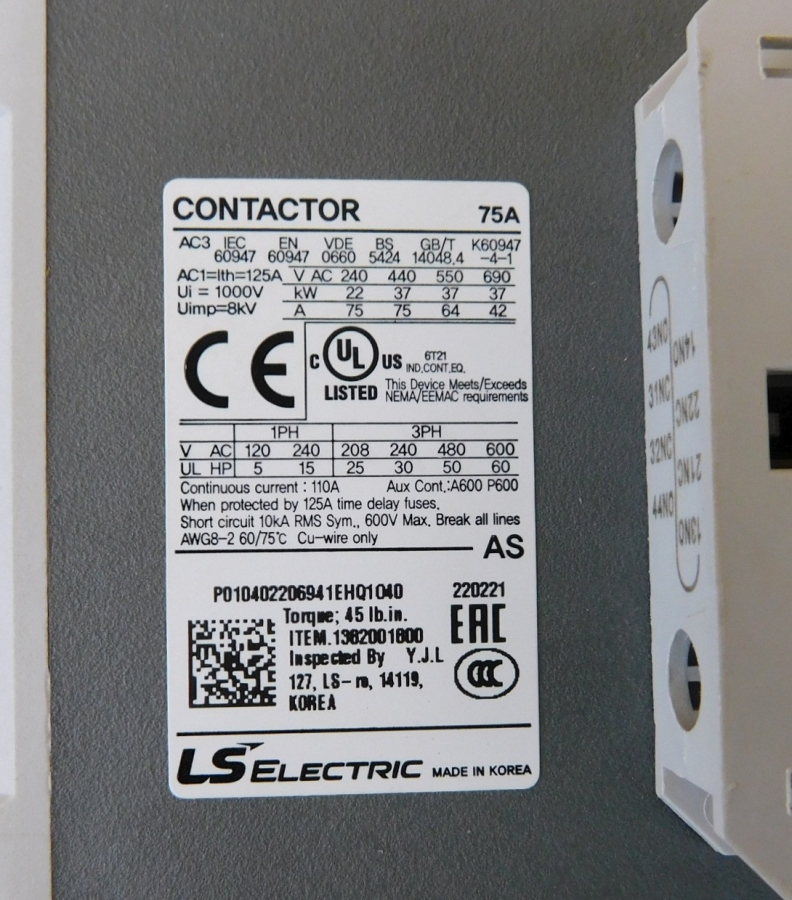

• Contactor - IEC size 75
• Overload - Class 10 differential type, phase failure protection
• Coil - 480V
• Contactor HP rating UL - 50HP @ 480V
• Overload trip range - 54-75 Amps
• Sized for Normal loaded 50 HP motor @ 480V
• Includes (1) N/O & (1) N/C auxiliary contact
• Overload Frame size 95
