Motor Starter, 45-65 Amp, 480V Coil, 40HP 480V, IEC Size 100
Stock:
In Stock
Complete motor starter sized for Heavy loaded 40HP at 480V. Operating Voltage is 480VAC
Contactor, IEC size 100. Overload Frame size 95. Heavy duty set up. Elimia PN: 45-65-480-100
Complete motor starter sized for a Heavy loaded 40HP at 480V. Operating Voltage is 480VAC.

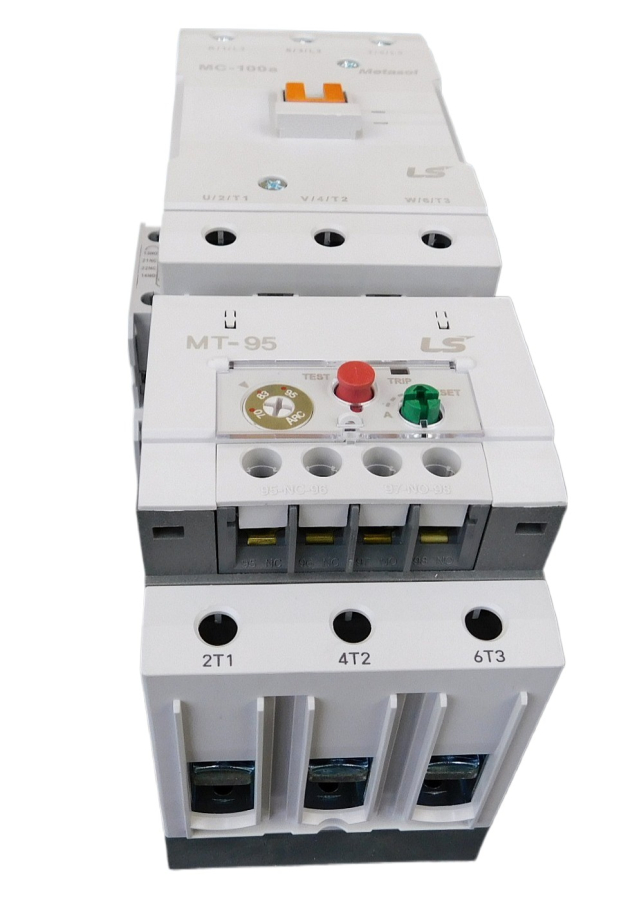

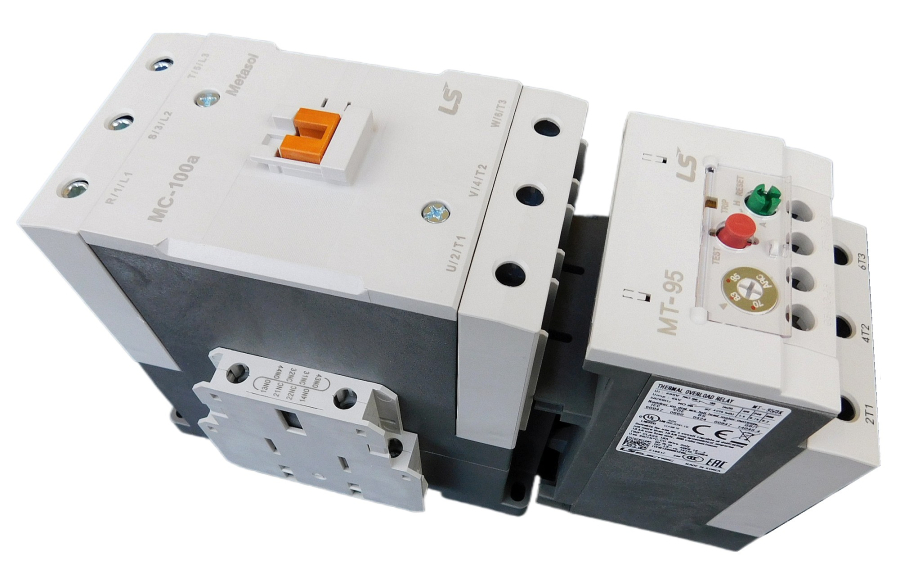

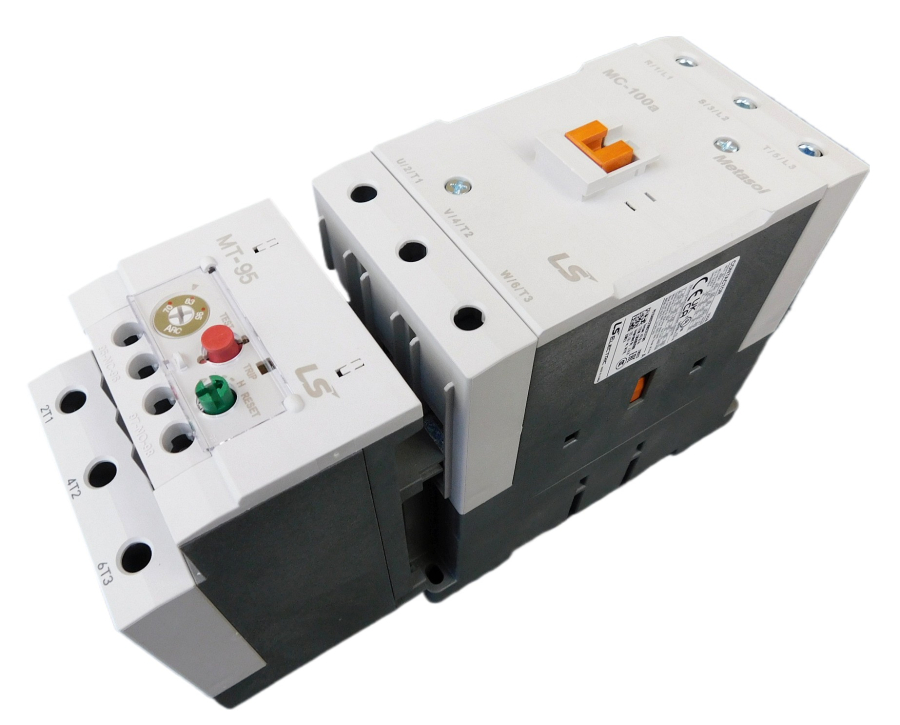

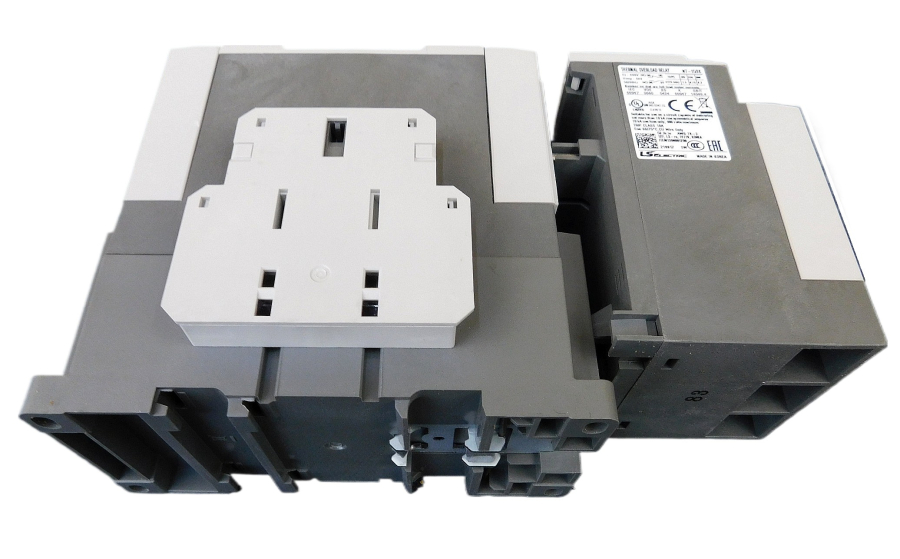

The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.
Shipped as two separate devices, contactor and overload.
LSis brand, made in Korea
- Contactor - IEC size 100
- Overload - Class 10 differential type, phase failure protection
- Coil - 480V
- Contactor HP rating UL - 75HP @ 480V
- Overload trip range - 45-65 Amps
- Sized for Heavy loaded 40 HP motor @ 480V
- Includes (1) N/O & (1) N/C auxiliary contact
- Overload Frame size 95
